2x faster
Superior compensation
Anti-Chatter Technology
Touchscreen interface
improves control and training
50% more torque
Variable speed
Reverse rotation for difficult jobs
50% more power cuts rotors twice as fast as other lathes

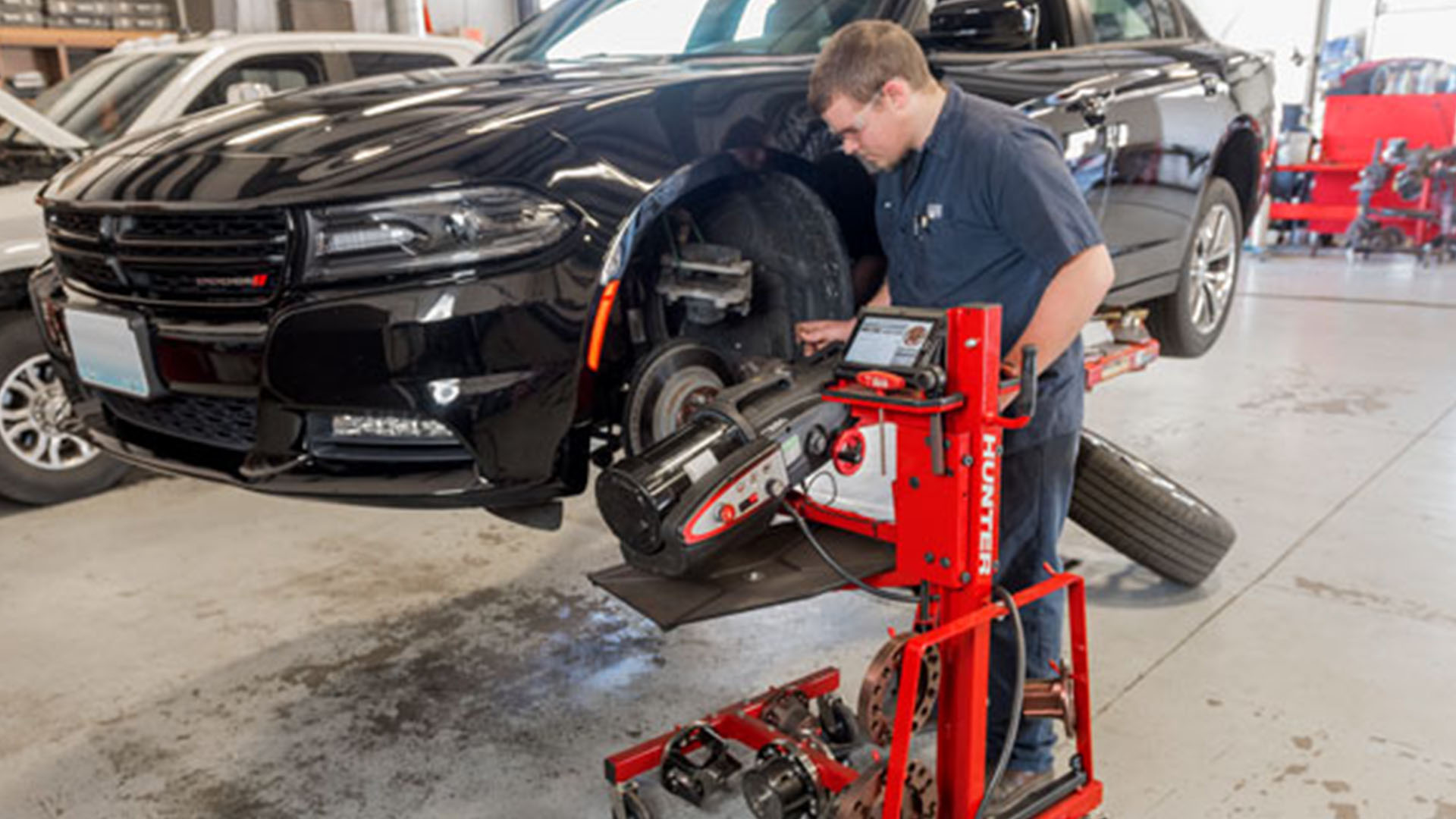

Hunter AutoComp Elite® On-Car Brake Lathe
Fast brake service turns a profit for your business
AutoComp Elite® Features
12 seconds or less average compensation time
Anti-Chatter Technology stops chatter before it starts
Touchscreen interface provides easy controls and additional info
Digi-Cal instantly measures rotor dimensions and depth of cut
Adaptors designed to fit any vehicle
Approved and recommended by multiple OEM partners
See what AutoComp Elite® can do for your shop
Hunter's AutoComp Elite® Brake Lathe at Laura Ford
Mike Wehrle, Service Manager at Laura Ford in Sullivan, MO talks about the superior surface finish and fast automatic compensation on rotor cuts they get from using the AutoComp Elite® brake lathe.

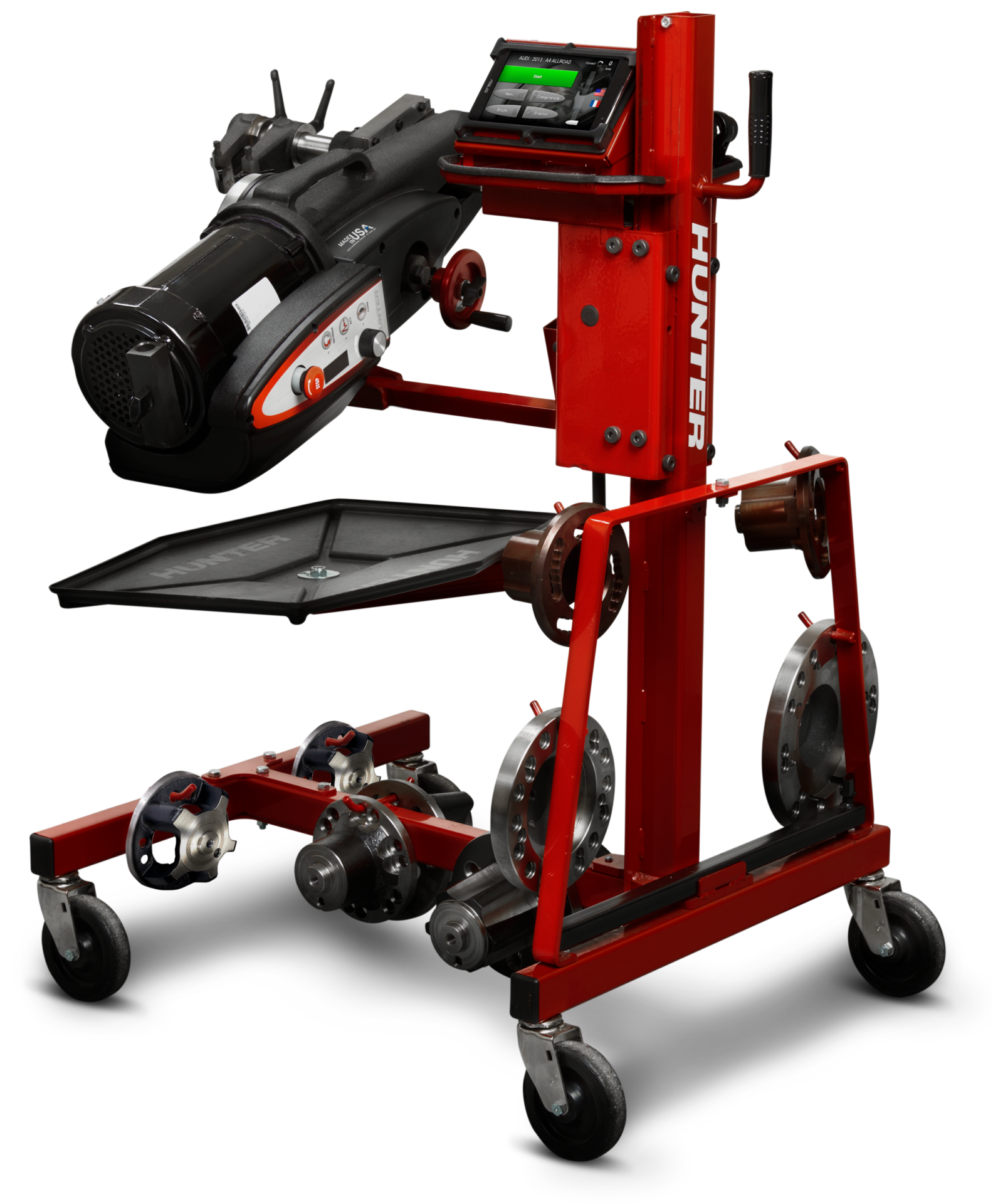

The AutoComp Elite® Family of On-Car Brake Lathes
The base AutoComp Elite® model combines its industry-leading cutting speed with automatic compensation for even greater performance.
How Anti-Chatter Technology Works
An in-depth explination on how Hunter Engineering’s Anti-Chatter Technology (ACT) works on Hunter’s BL Series Bench Lathe and the on-car lathe, AutoComp Elite®. This technology provides better brake rotor surface finish while also allowing the lathe to cut much faster.
The Benefits of On-Car Brake Lathes
This video explores the causes of vehicle brake shudder and explains why resurfacing rotors on the vehicle provides a better, longer lasting brake job.
Boost efficiency
Fast brake service turns a profit for your business
Simplifies operation & “on-the-job” training with built-in training videos.
Measure rotor dimensions and depth of cut accurately from the end of the cutter shaft.
Directly determines compensation and eliminates “wandering”.
Oscillates machining speed to prevent the buildup of vibration.
Cut approximately twice as fast as other lathes.
Class-leading variable speed and torque helps service difficult vehicles.
Choose adaptors to fit lug nut torque specs on your most serviced vehicles.
Controls are always upright and easy to read on both sides.
Approved and recommended by multiple OEM partners
Lease to own over 60 months
with repayments
Your business can lease to own this Hunter AutoComp Elite® from approx. $175.00 per week excluding GST on a 60 month term. Included is our 36 month comprehensive service agreement, which covers all parts and labour & includes 6 monthly preventative maintenance calls from our Hunter factory trained technicians.
from
$35.00
per day
Terms and conditions apply.
Choose the best option for your shop

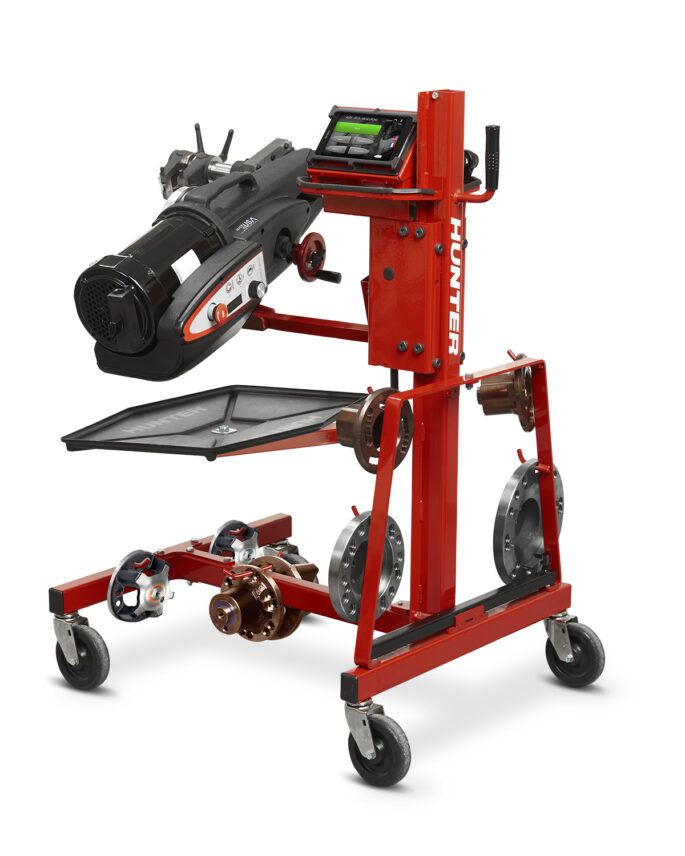

Digi-Cal
Includes: Standard model features PLUS Digi-Cal rotor measurement system which compares rotor thickness to vehicle specifications.

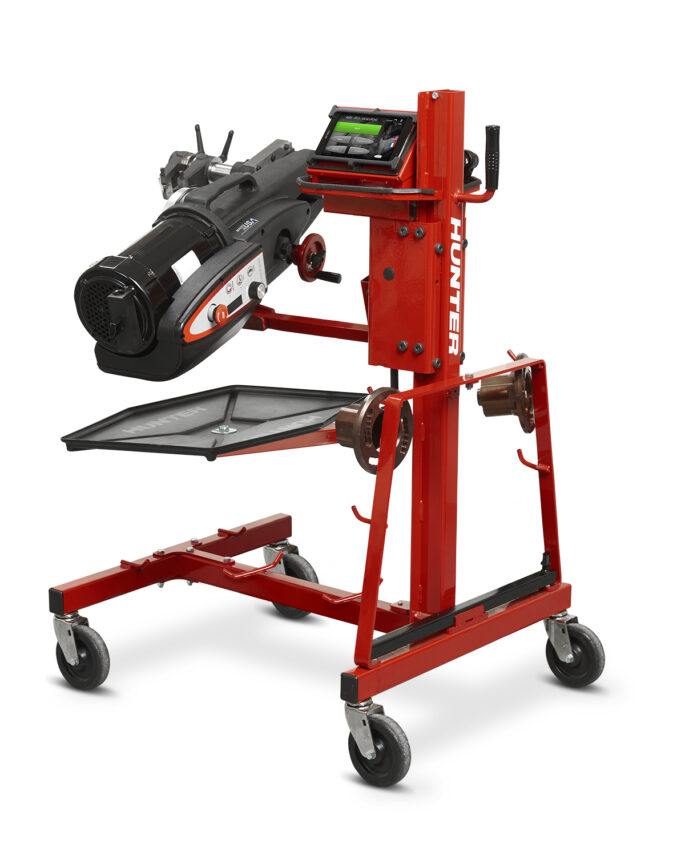

Standard
Includes: Base model features PLUS tablet interface, Vehicle spec database, BitMinder, Language support, training videos.

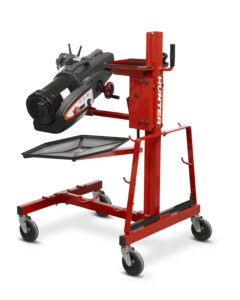

Base Model
Includes: Anti-Chatter Technology ACT, 2X faster cuts, 50% more power, variable speed, reverse operation and more.
Quality results
Anti-Chatter Technology
Stop chatter before it starts
Anti-Chatter Technology varies the spindle speed to keep chatter-inducing vibration from starting, resulting in a smooth finish.
- Anti-Chatter Technology (ACT) varies spindle speed to keep chatter-inducing vibration from starting, resulting in a smoother surface finish
- Chatter can start when machining rotors at a fixed speed. This is similar to how a moistened finger can make a crystal glass sing
Anti-Chatter Technology is optional on BL series brake lathes.
See what Hunter brake lathe equipment can generate for your business
Touchscreen interface gives full control of the cut
The optional touchscreen interface allows instant access to rotor specs, thickness and depth cut display, on-board operation videos, and more.
Operation screen
The optional touchscreen interface allows instant access to rotor specs, thickness and depth cut display, on-board operation videos, and more.
On-board training videos
Get techs up to speed quickly.

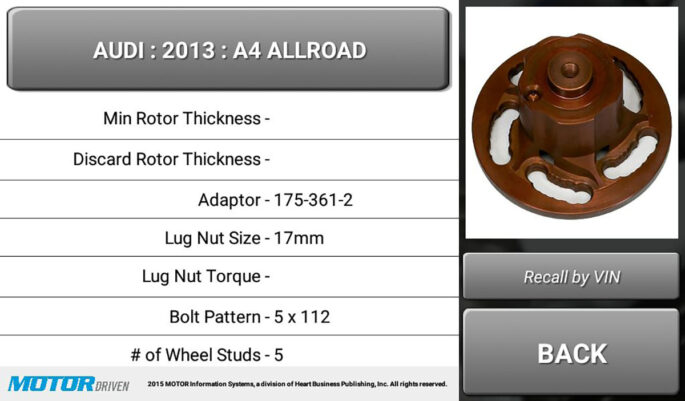

Vehicle database
Quickly look up adapters and brake specifications.
Bitminder
Track cutting bit usage efficiently.

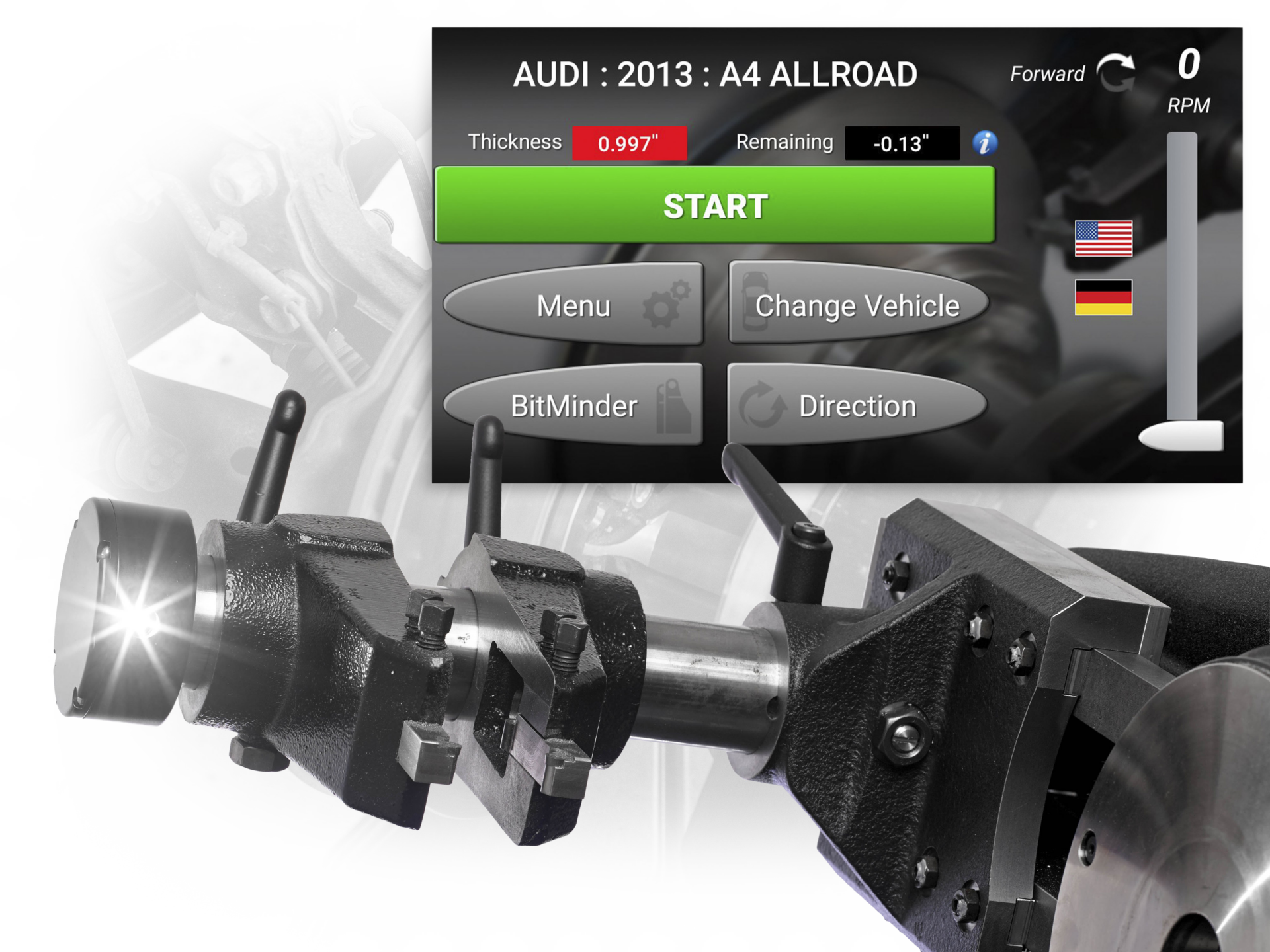

Digi-Cal instantly measures rotor dimensions and depth of cut
Measuring system is located at the end of the cutter shaft
Warning displayed when attempting to cut below manufacturer spec
Power saving system prevents calibration loss when turned off or stored
Warning displayed when attempting to cut below manufacturer spec
No hand tools required
Automatic compensation “dials it in”
Eliminate guesswork by accurately calculating direct compensation.
Hunter system
Direct compensation
Five adjustments occur in a single revolution.

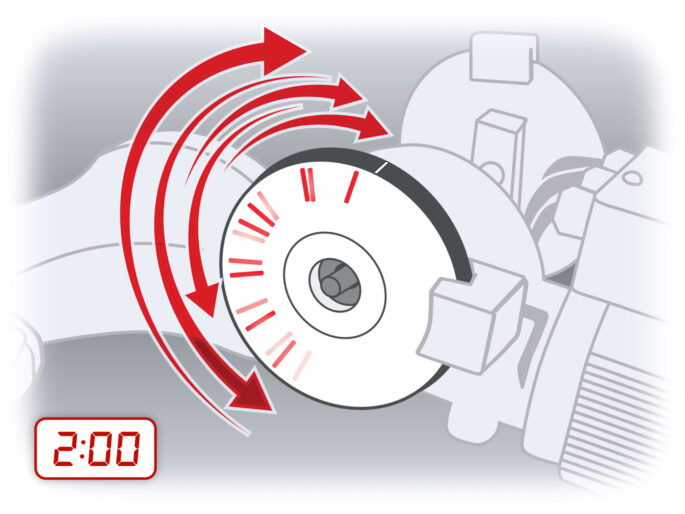

Others
Wandering compensation
Unpredictable and inconsistent adjustments happen throughout.
Versatility
Service vehicles with high driveline drag or locking differentials
Variable‑speed drive enables the fastest high‑quality rotor resurfacing and helps prevent differential lock‑up on trucks and performance vehicles.
Reverse rotation and a powerful 1.5‑hp motor allow cutting rotors on vehicles with high driveline drag, making trucks and performance models easier while avoiding extra labor and drivetrain component removal.
Get a free pricing quote today
Your local Hunter team will provide pricing and additional information on accessories, installation, training and more

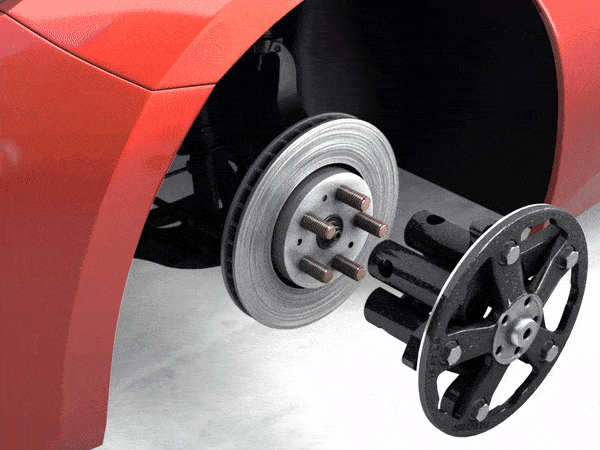

16 adaptors can be replaced by 5 adaptors
Service 3-, 4-, and 5-lug vehicles (112-210mm bolt patterns) with coverage of almost all vehicles up to 3500 series trucks when paired with the passenger adaptors and extended twin cutter.
Go completely cordless
The AutoComp® Elite on-car brake lathe now offers a new cordless option with a bolt-on shelf for a power pack, enabling the lathe to cut approximately 40 rotors without recharging.
*Battery power pack not included

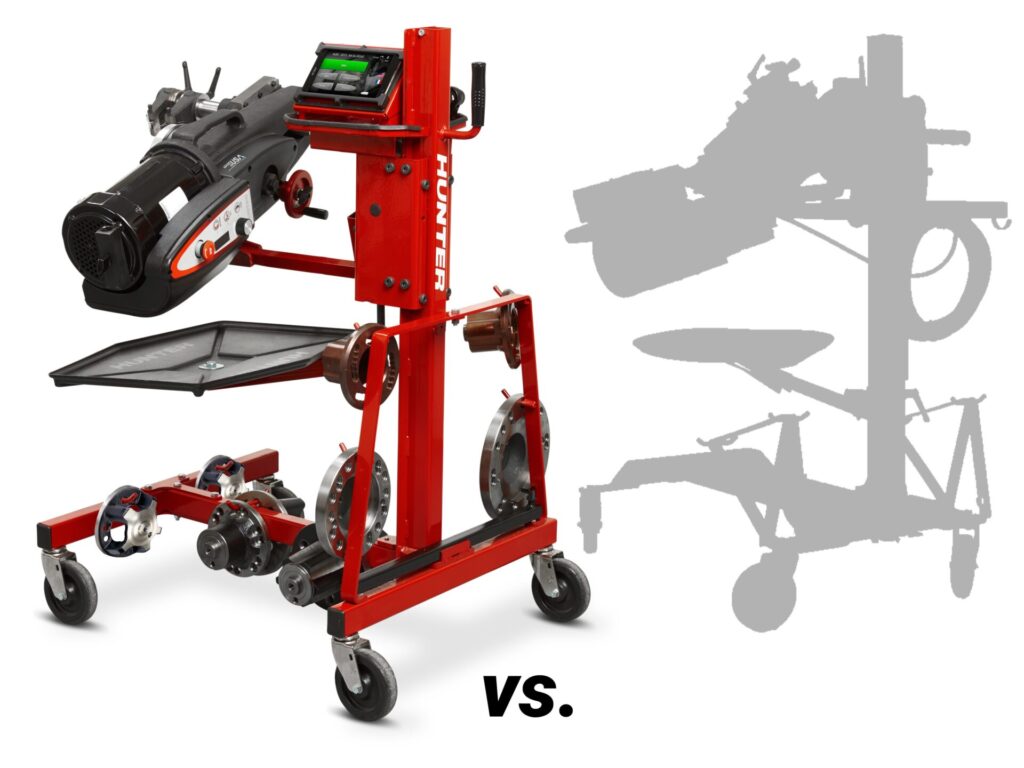

How does it compare?
Other On-Car Lathes
Bench Lathe
No need to remove rotors
True one-cut pass
Runout < 0.001″
Anti-Chatter Technology
Interrupted cut breaks spiral groove
Simple setup
On-screen lookup of specs,
tolerances, and torques
Inexpensive Replacement Rotors
No waiting for orders
Avoid comebacks
Save labor on captured rotors
Labor more profitable than parts
Bay not tied up
Job completed faster
Replacement rotors
are often poor quality
No concern of stacking tolerances
or material behind hub

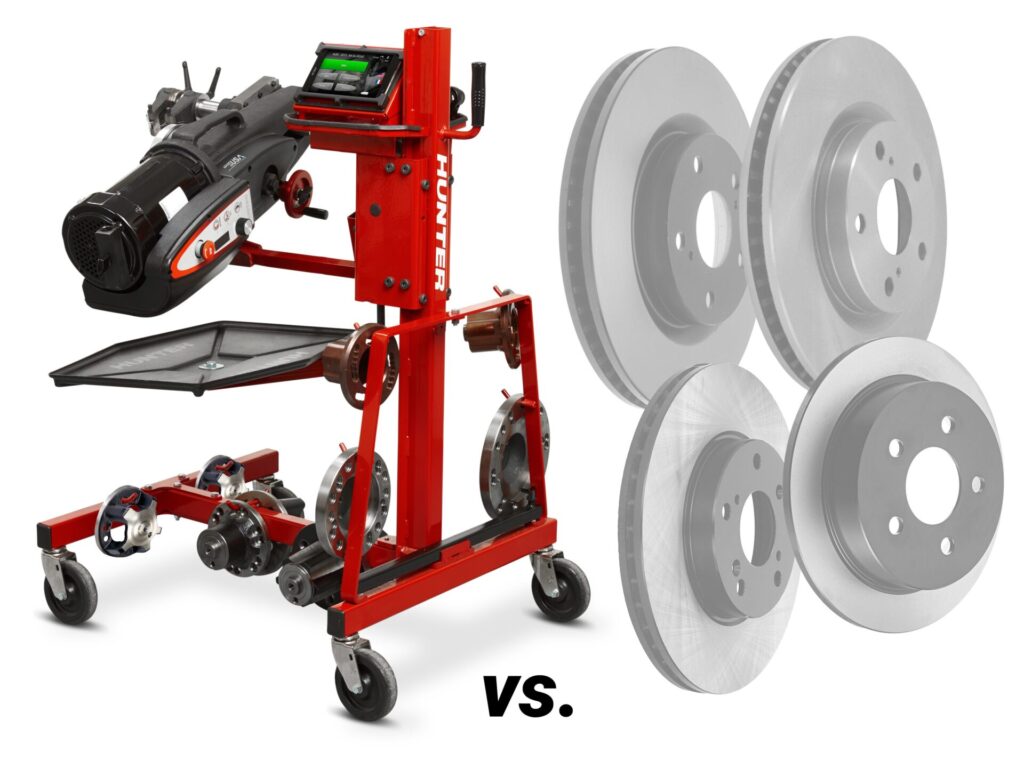

Resurface vs. Replace
Swapping rotors may not address issues like hub runout or improper alignment. AutoComp Elite® corrects these alignment issues during resurfacing, ensuring the rotor matches the vehicle’s unique geometry. Resurfacing extends the life of existing rotors instead of discarding them prematurely, which is more sustainable.
HunterNet® 2 Portal
Take control of your equipment, numbers, and profitability
Connect your equipment to your business
- Maximize your shop’s performance
- Simplify customer discussions with selling tools
- View extensive undercar information
Get a high-level overview of your alignment machine usage trends.
View details on previously serviced vehicles.
See in-depth alignment machine usage statistics.
Receive daily Push Reports to keep your goals on track.
Specifications
| Expand all Collapse all |
|
|
ACE02 |
|---|
ACE00
ACE10
| Key Features | ACE22 | ACE12 | ACE02 |
|---|---|---|---|
| Interface | Tablet | Tablet | N/A |
| Digi-Cal | YES | NO | NO |
| Adaptors | Pro | Pro | Pro |
| Power Requirements | ACE22 | ACE12 | ACE02 |
|---|---|---|---|
| Amperage | 15 | 15 | 15 |
| Hertz | 60 Hz | 60 Hz | 60 Hz |
| Plug | NEMA 5-15P | NEMA 5-15P | NEMA 5-15P |
| Rotor | ACE22 | ACE12 | ACE02 |
|---|---|---|---|
| Max Diameter | 17.5 in | 17.5 in | 17.5 in |
| Max Thickness | 2.75 in | 2.75 in | 2.75 in |
| Max Friction Face | 3.69 in | 3.69 in | 3.69 in |
| Additional Information | ACE22 | ACE12 | ACE02 |
|---|---|---|---|
| Spindle Speed | 0-150 rpm | 0-150 rpm | 0-150 rpm |
| Motor | 1.5 hp (1.12 kw) @ 3450 rpm | 1.5 hp (1.12 kw) @ 3450 rpm | 1.5 hp (1.12 kw) @ 3450 rpm |
