Hydraulic Eco Compact Triple Stacker

Overlap platform design

Hydraulic Eco Compact Triple Stacker

Hydraulic Eco Compact Triple Stacker

Hydro-Park 2525 & 2625

Hydro-Park 2525 is a MUTRADE newly developed  3-floor version of HP2236 and can be used as a  3-floor stacker parking like eco version of HP3130.  The design of HP2525 is based on the HP2236, the  equipment is used as valet parking or storage. The  platforms move only vertically driven by a hided  strong hydraulic cylinder with wire ropes.

  • Commercial grade
  • Overlap platform design
  • Ramps total height 150mm
  • Ground floor unlimited, 2nd floor 2500kg and 3rd  floor 2000kg capacity
  • Entrance width 2492mm, 2nd floor 2100mm and  3rd floor 2200mm driven width
  • Clear height 2100mm on each floor
  • 4000mm/min (no-load) traveling speed
  • 3.0kw hydraulic pump
  • Powder coating finishing

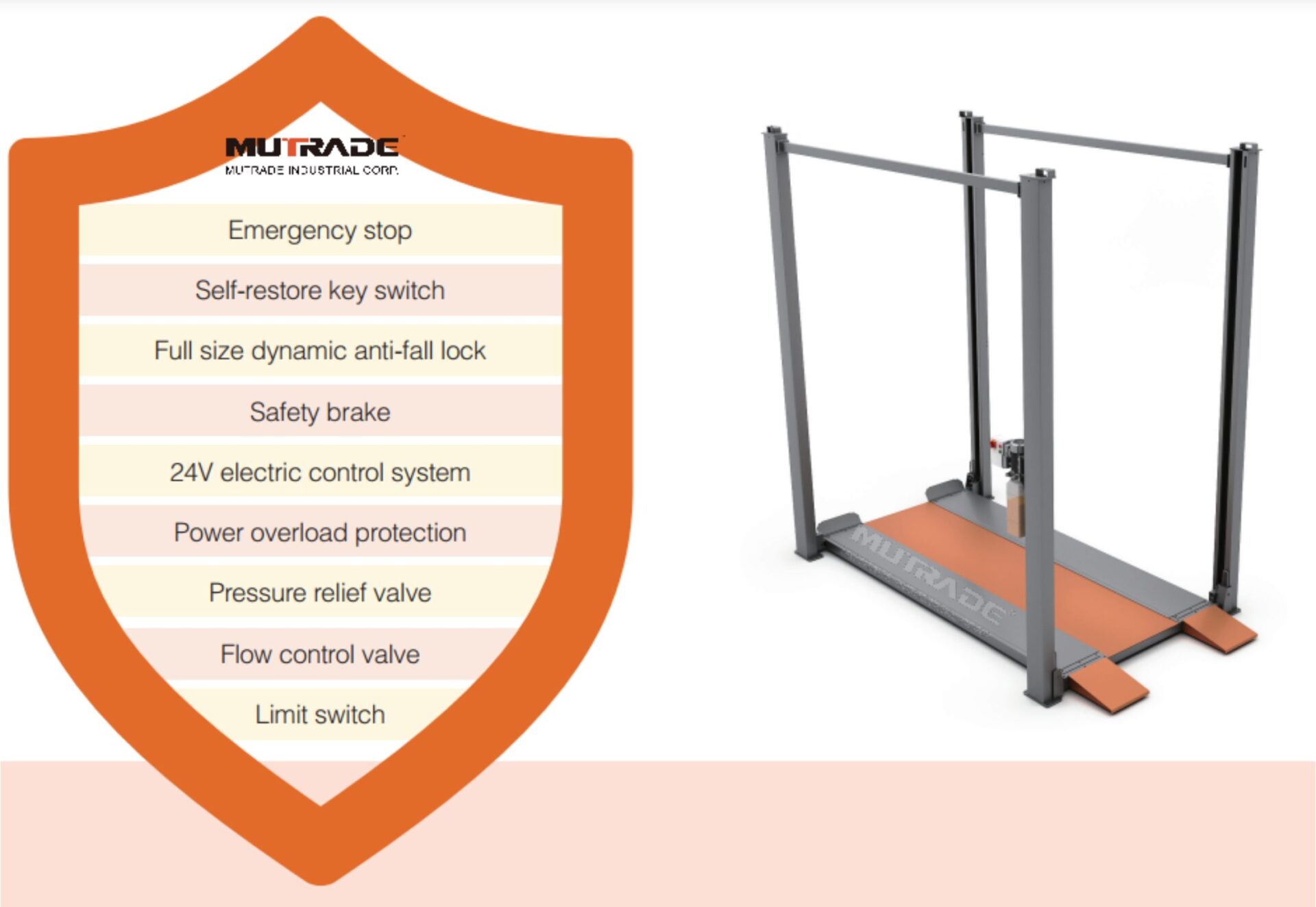

  • Dynamic anti-fall lock
  • Dust/oil dripping cover
  • Lock release failure detection
  • Semi-auto lock release
  • Emergency stop button
  • Up & down key switch
  • Self-standing & supporting structure (Optional)
  • TUV Rheinland Certified

Hydro-Park 2525/2625

A new comprehensive upgrade of Hydro-Park 2236 and  Hydro-Park 3130 models

HP2525 lifting height is 2100mm, HP2625  lifting height 1850mm (Ground floor), 2nd floor 1600mm

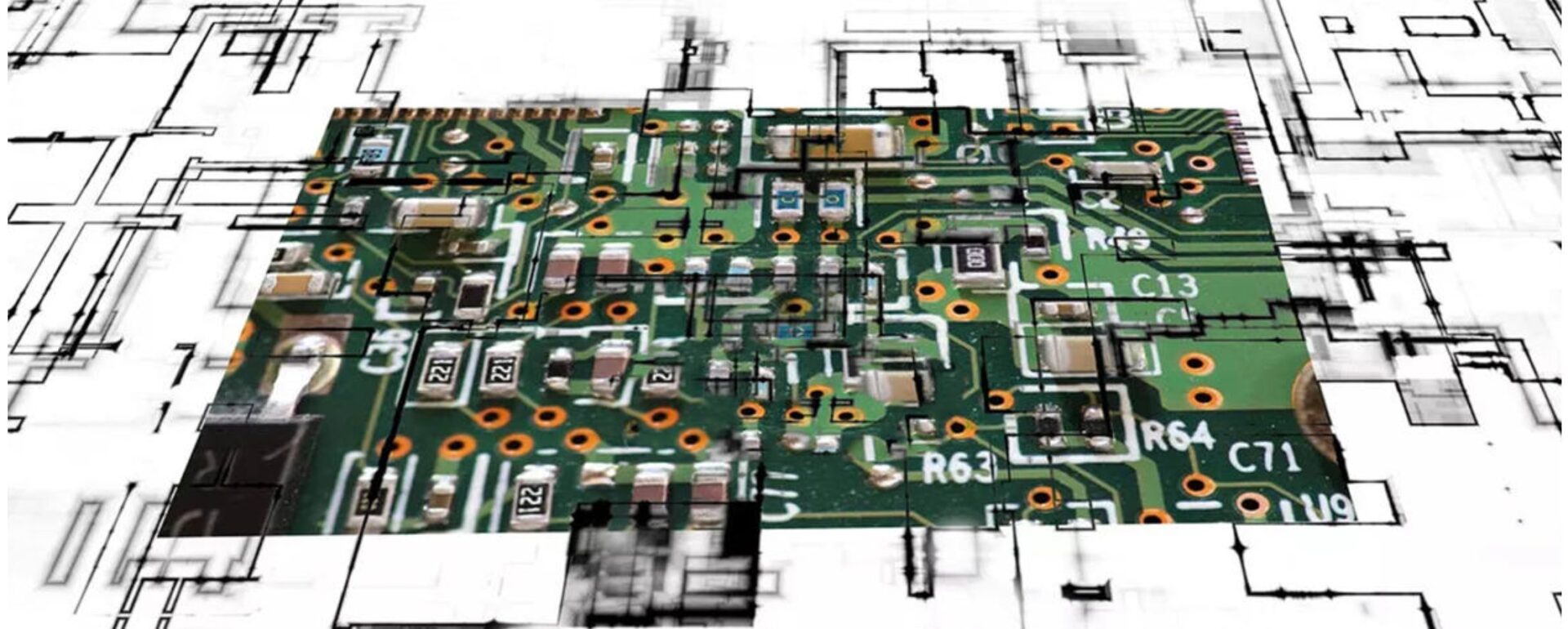

New design control system

The operation is simpler, the use is safer, and the failure rate is reduced by 50%.

Auto lock release system

The safety locks can be released automatically when user operate to make the platform down

Gentle metallic touch, excellent surface finishing

After applying AkzoNobel powder, color saturation, weather resistance and
its adhesion are significantly enhanced

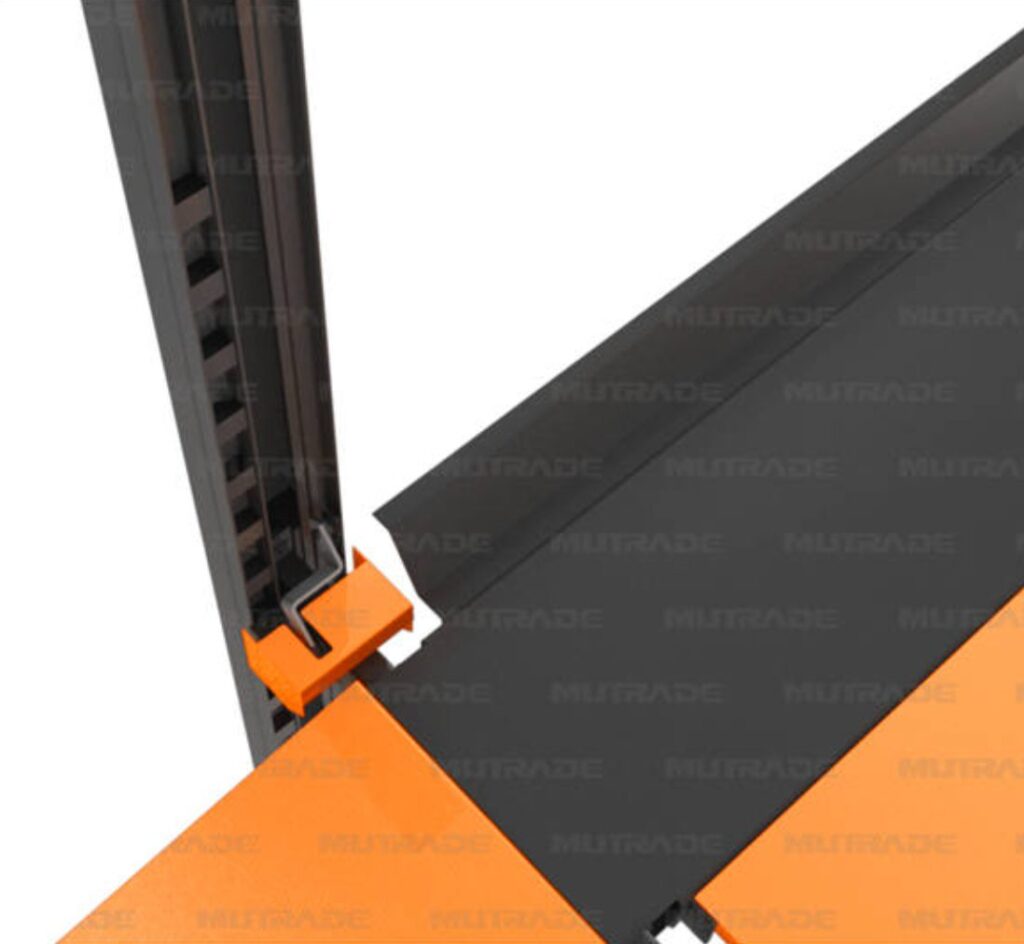

Dynamic locking device

There are full range mechanical anti-falling locks on the
post to protect the platform from falling

More stable electric motors

Newly upgraded power pack unit system

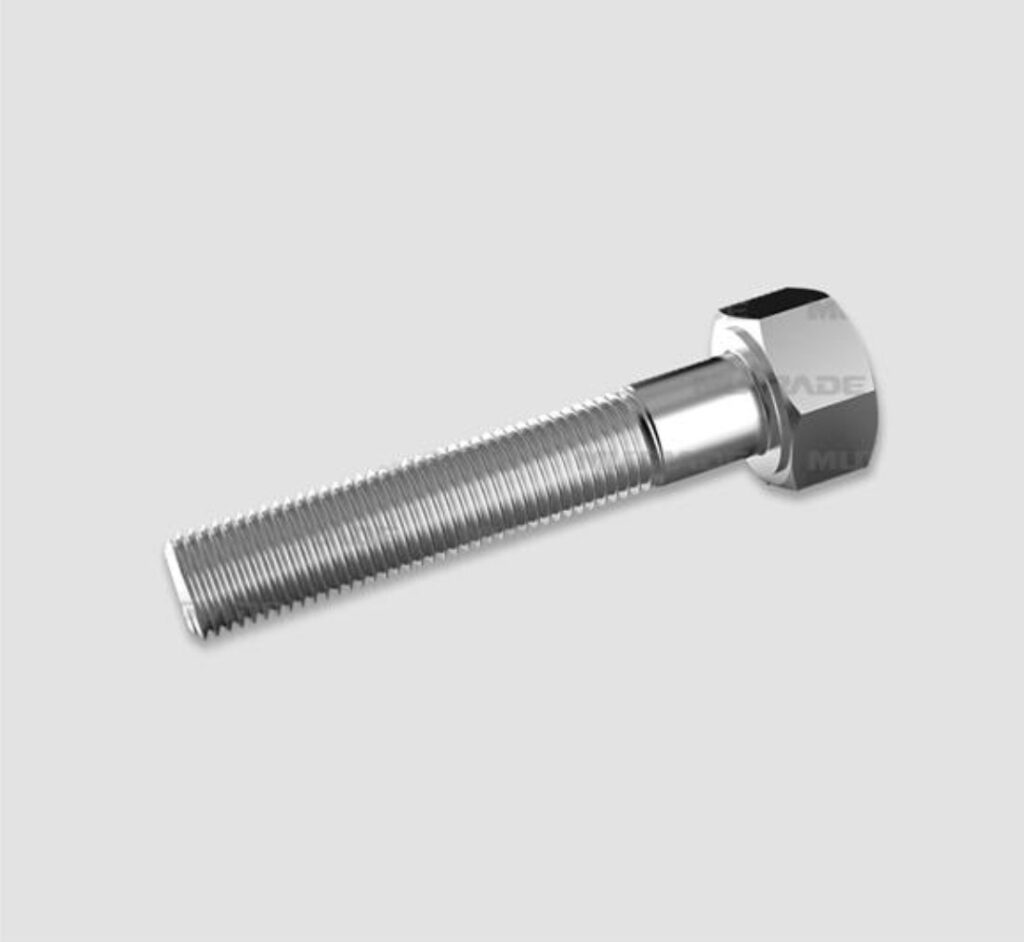

Galvanized screw bolts based on the European standard

Longer lifetime, much higher corrosion resistance

Laser cutting + Robotic welding

Accurate laser cutting improves the accuracy of the parts, and automated robotic welding makes the weld joints more firm and beautiful

Lease to own options

Your business can lease to own this Hydraulic Eco Compact Triple Stacker, talk to us today about a package that best suits your needs.


Expand all Collapse all

Hydro-Park 2525

Get a quote

Hydro-Park 2625

Get a quote

Key Specifications Hydro-Park 2525 Hydro-Park 2625
Lifting capacity Ground floor unlimeted, 2nd floor 2500kg
and 3rd floor 2000kg
Ground floor unlimited, 2nd floor 2500kg
and 3rd floor 2000kg
Lifting height Ground floor and 2nd floor 2100mm Ground floor 1850mm, 2nd floor 1600mm
Usable platform width 2492mm 2492mm
Power pack 3Kw hydraulic pump 3Kw hydraulic pump
Available voltage of power supply 220V-420V, 1 or 3 Phase, 50/60Hz 220V-420V, 1 or 3 Phase, 50/60Hz
Operation mode Key switch Key switch
Operation voltage 24V 24V
Safety lock Dynamic anti-falling lock Dynamic anti-falling lock
Lock release Semi-auto lock release Semi-auto lock release
Lifting speed 4000mm/min (no load) 4000mm/min (no load)
Finishing Powdering coating Powdering coating
