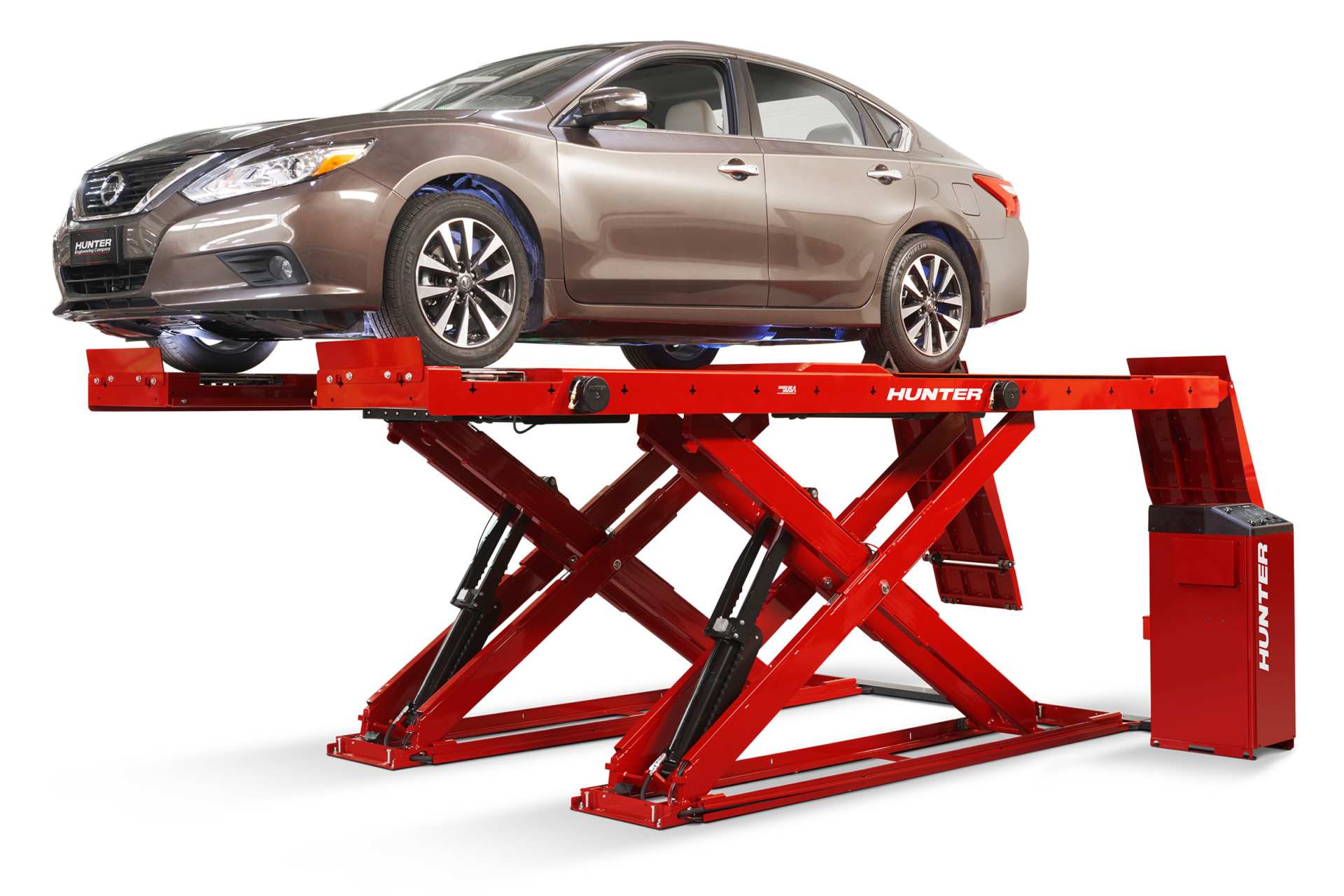

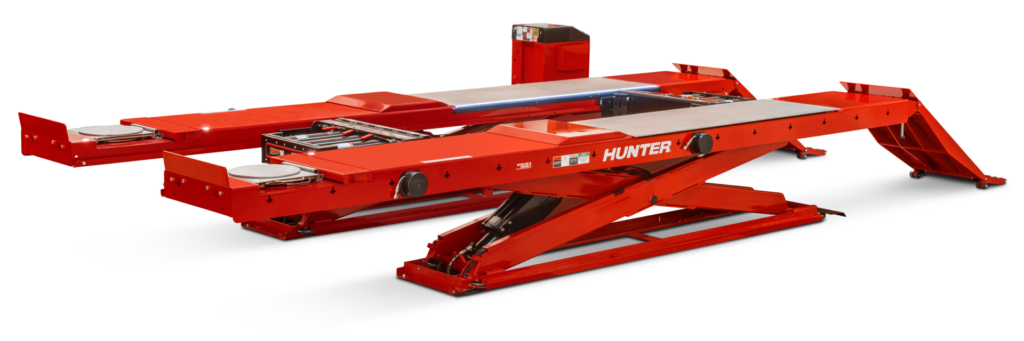

Hunter’s automotive scissor lift family offers four capacities and several wheelbase lengths to meet virtually any need. Hunter vehicle scissor lift racks feature low drive on heights for all models, or even popular flush mount configurations. Add Inflation Station, PowerSlide, and AlignLight options to really ramp up productivity.
New harsh-duty options available to for high road salt/brine use applications
Open-front and rear access
Built-in slip plates standard
Stainless steel turnplates standard
Two moveable worksteps standard
Hunter’s family of Lift Racks, including scissor and four-post lifts are available in traditional or flush mount configurations. The RX16 features a power up mode, lifting sixteen thousand pounds.
Hunter Engineering offers a wide selection in our scissor alignment lift family, all offering maximum productivity in minimum space.
Hunter’s Fully Integrated Alignment System streamlines the entire alignment process! Hunter’s fully integrated alignment system reduces the technician’s trips around the vehicle, and greatly reduces trips to the alignment console.
Hunter equipment has convinced not only the technicians at Tersa, but their customers as well.
FIA allows WinAlign® wheel alignment machines to control lift functions for ultimate productivity. Wireless communication between the lift and the aligner reduces technician effort and the potential for errors.
Two editions of FIA are available – PowerSlide and InflationStation.
Eliminate ground clearance concerns, and give your workspace a premium appearance.
Drive-on ease, up to vehicles 2337mm wide, wheelbase choices allow for fits for every shop.
Reduced lowering time by 50% with soft landing ensures safety.
Two high-capacity swing air jacks come equipped—world class jacks with unmatched height, reach and durability.
2235 mm to 4013 mm long for 4-wheel alignments on any vehicle.
Stainless Steel Turnplates Standard, for a lifetime of easy and accurate alignments.
High traction prevents wheel spin. Better than diamond plat or abrasive finish.
Fine mesh locks insure levelness and safety.
Keeps runways level at all time shuts down with obstruction
Instantly shutdown in event of hose failure
See where you work. Lights shut off automatically when rack is lowered, light when raised.
Air supply to jacks and auxiliary ports standard.
Sturdy, lightweight and lock into multiple convenient locations (not suitable for flush lifts).
Racks with Hunter’s Harsh Duty feature enhanced corrosion protection for those regions with high road salt and brine solution usage. Available only on IS and PS model lift racks.
| Expand all Collapse all |
RX45KFIS-215E |
RX55KFPS-215E |
RX63KIS-215E |
RX72KFIS-215E |
|---|
| Key Specifications | RX45KFIS-215E | RX55KFPS-215E | RX63KIS-215E | RX72KFIS-215E |
|---|---|---|---|---|
| Max Vehicle Weight | 4500kg | 5500kg | 6300kg | 7200kg |
| Runway Width | 609.6mm | 609.6mm | 609.6mm | 609.6mm |
| Max Two-Wheel Alignment | 4114.81mm | 4445.01mm | 4622.81mm | 4521.21mm |
| Max-Four Wheel Alignment | 4013.21mm | 4013.21mm | 4013.21mm | 4013.21mm |
| Max General Service | 4241.81mm | 4572.01mm | 4749.81mm | 4648.21mm |
| Minimum Four Wheel Alignment | 2235.2mm | 2235.2mm | 2235.2mm | 2235.2mm |
| Max Raise Height | in | in | 1828.8mm | 1828.8mm |
