Hunter Four-Post Lifts

Heavy lifting, four-post lift alignment racks

Four-Post Lifts

High production automotive lifts and alignment racks

Hunter offers a four-post model for nearly every need.  Easy to use open-front models make alignment easy.   The widest runways and two wheelbase lengths make easy work of even large trucks.  Add Inflation Station, PowerSlide, and Alignlight options to really ramp up productivity.

New Harsh Duty options are available for high road salt/brine use applications.

Features at-a-glance

Open-front or closed-front configurations

Built-in slip plates standard

Stainless steel turnplates standard

Two moveable worksteps standard

Specifications at-a-glance

8000 kg


2 x 4000 kg

Capacity jacks

660 mm

Wide runways

4496mm or 5360mm

2-Wheel alignment capable

Product family at-a-glance

See them in action

Upgrade your vehicle service capabilities.


Easy access to service points and jacks. Standard on L451 models

Extra-wide runways can service vehicles up to 2337 mm. Two lengths are available to accomodate 4496 mm or 5360 mm wheelbases.

Heavy-weight 8164 kg lifting capacity is best-in-class.

Two 4083 kg capacity swing-air jacks come standard for unmatched height, reach and durability.

Convenient console featuring push-button functions give technicians full-control.

2235 mm to 4013 mm for 4-wheel alignments

Standard, for a lifetime of easy and accurate alignments. PowerSlide™ turnplates offer ease-of-use.

Air supplied to jacks and auxiliary ports come standard.

Sturdy, lightweight and lock into multiple convenient locations

See where you work. Lights shut off automatically when rack is lowered and turn on when raised.

High-strength galvanized cables and 16-position louvered level locks provide long, reliable life.

High-traction design prevents wheel spin – better than diamond plate or abrasive finish.

Protective cord covering prevents damage to air and hydraulic lines.

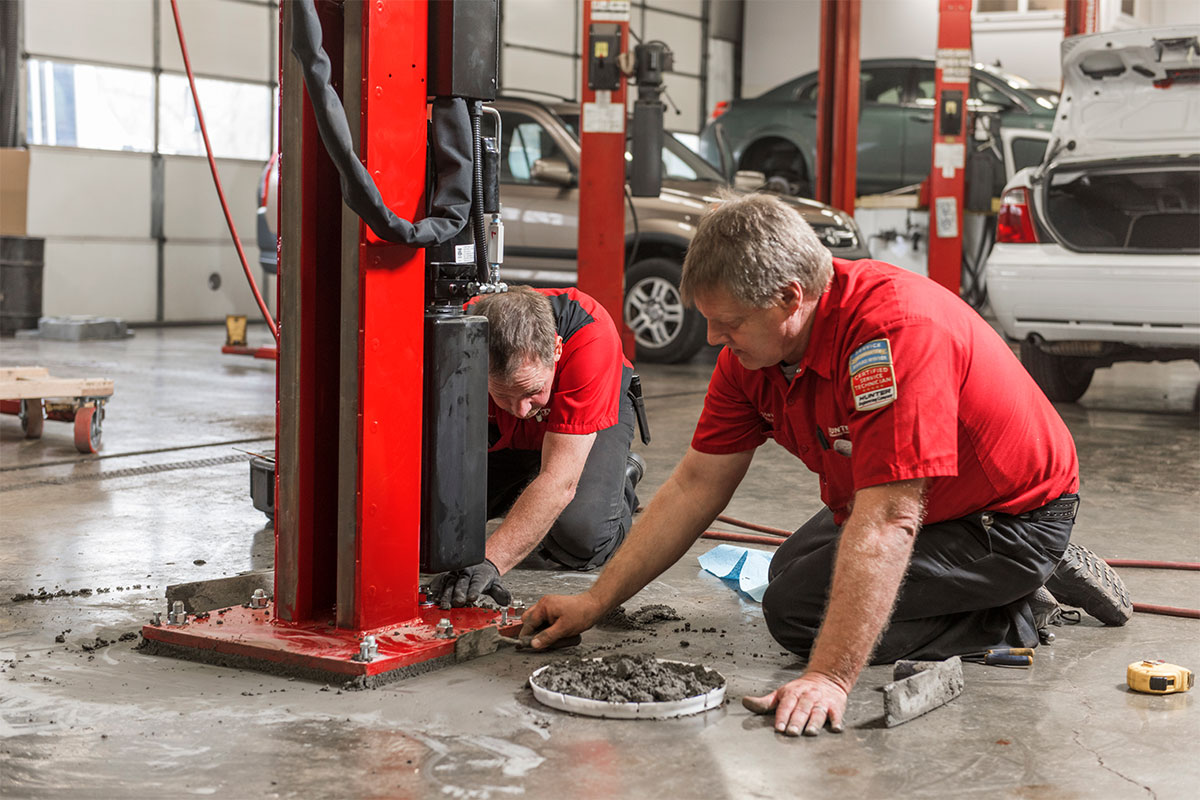

Designed & built in the USA, and installed locally by Hunter’s highly-qualified service team.

Lease to own over 60 months
with repayments

Your business can lease to own this Hunter L454L Lift from approx. $425.00 per week excluding GST on a 60 month term.



per day

Terms and conditions apply.

Fully-Integrated Alignment maximizes productivity



Inflation Station

Optional Harsh Duty Four-Post Lift

Racks with Hunter’s Harsh Duty feature enhanced corrosion protection for those regions with high road salt and brine solution usage.


Expand all Collapse all


Get a quote


Get a quote


Get a quote


Get a quote

Key Specifications L451T-IS L454T-IS L451LT-IS L454LT-IS
Max Vehicle Weight 18000 lbs 18000 lbs 18000 lbs 18000 lbs
Runway Width 660.4 mm 660.4 mm 660.4 mm 660.4 mm
Max Two-Wheel Alignment 4495.81 mm 4495.81 mm 5359.41 mm 5359.41 mm
Max-Four Wheel Alignment 4013.21 mm 4013.21 mm 4013.21 mm 4013.21 mm
Max General Service 4902.21 mm 4902.21 mm 5765.81 mm 5765.81 mm
Minimum Four Wheel Alignment 2235.2mm
2235.2mm 2235.2mm 2235.2mm
Max Raise Height 2489.2mm 2489.2mm 2489.2mm 2489.2mm
Features L451T-IS L454T-IS L451LT-IS L454LT-IS
Fully Integrated Alignment YES N/A YES N/A
Inflation Station YES YES YES YES
Powerslide® Slipplates and Turnplates YES YES YES YES
Two-Speed Lowering YES YES YES YES

See other shops using them

Make a statement in your shop with the four strongest posts in undercar service.
