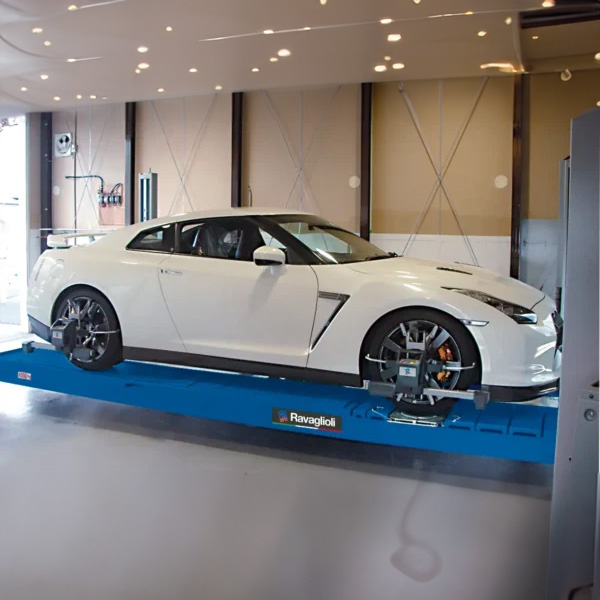

Ravaglioli 4-post lift

Maximum productivity, minimum space

Ravaglioli 4-post lift

4000 Series

  • The hydraulic cylinder is located inside the fixed platform and is thus perfectly protected
  • High-resistant, galvanised and pre-stretched metal cables
  • Large-diameter pulleys with self-lubricating and maintenance-free bushes
  • Automatic mechanical back-up safety devices (every 100 mm) with pneumatic release allowing stationary operation with unladen cables
  • Immediate-triggering safety stud devices in case a cable slackens or fails
  • Automatic anti-toe trap alarm during final stages of lift descent
  • Mechanical, electrical and hydraulic safety devices in compliance with the prevailing standard for CE marking
  • Low-voltage (24 V) electrical system with control circuit

Product family at-a-glance

Specifications

Features RAV4406L RAV4502L RAV4800
Number of columns 4 4 4
Mode of drive electrohydraulic electrohydraulic electrohydraulic
Control electric electric electric
Type of installation floor mounted floor mounted floor mounted
Rated load capacity 4000kg 5000kg 8000kg
Max. lifting height 1965mm 1965mm 1950mm
Drive-on-height 210mm 210mm 200mm
Clear span between 3000mm 3000mm 3300mm
Clear span between (out) 3355mm 3355mm 3780mm
Column height 2300mm 2300mm 2874mm
Drive-through width 2670mm 2645mm 2810mm
Wheel Alignment optional
Length of platforms 5100mm 5700mm 6000mm
Width of platforms 650mm 650mm 650mm
Space of platforms 900mm 776 – 940mm 850 – 1150mm
Drive-on ramp length 6767mm 6974mm
Driving power 2,6kW 2,6kW 2,6kW

From 35,000 to 8,000 kg
