Hunter HD Four-Post Lift

High-capacity alignment lift for commercial vehicles

Hunter HD Four-Post Lift

Heavy-Duty Four-Post
Truck Lift

High-capacity alignment lift for commercial vehicles

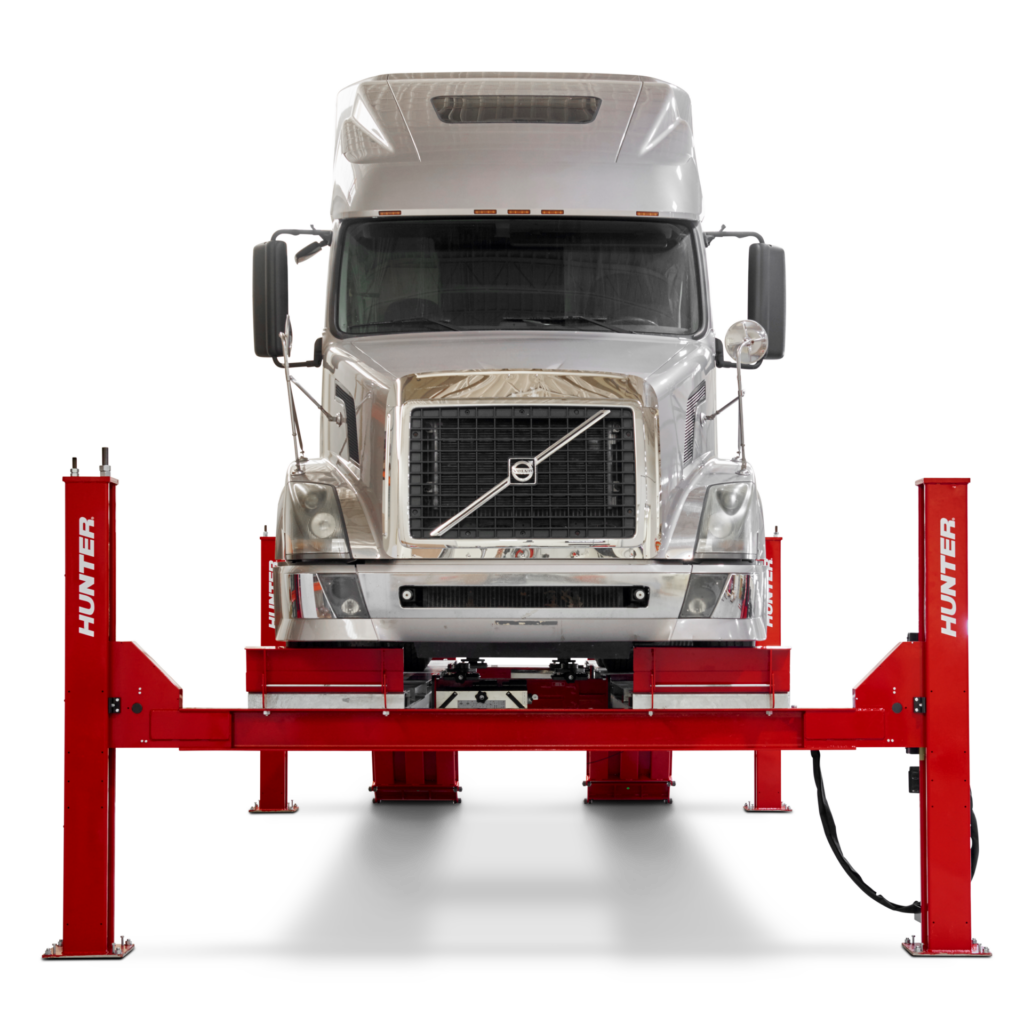

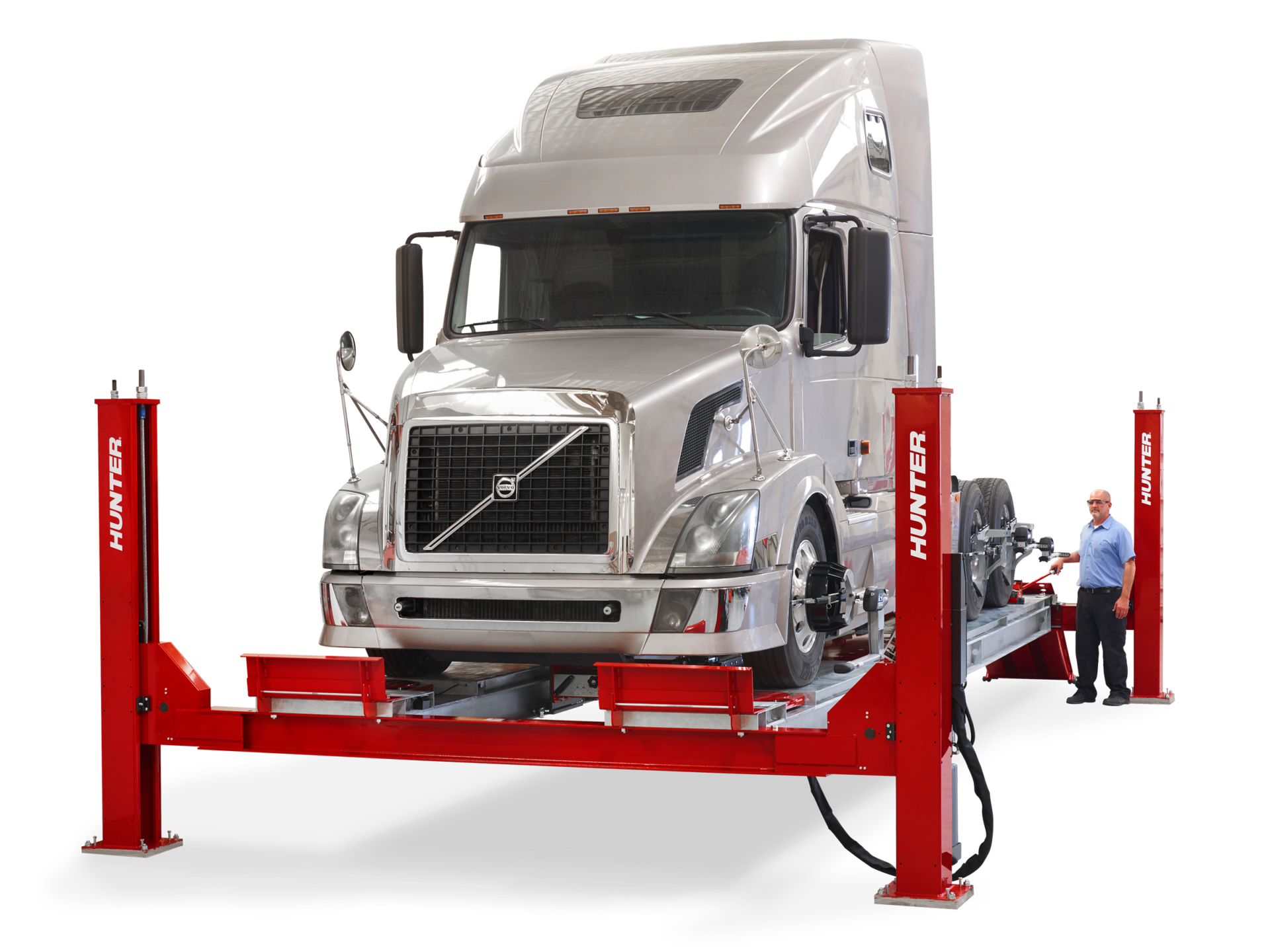

Hunter’s Heavy-Duty Four-Post semi and truck lift features a 15000KG. lifting capacity and 7620 mm. alignment wheelbase capability. The galvanized runways offer the best in corrosion protection for your investment.

The lift comes alignment ready with turnplate pockets and slipplates for servicing standard vehicles.  It can be equipped with optional Powerslide® and FIA turnplates and slipplates saving time by eliminating trips around the truck when locking and unlocking plates.  The aligner can be connected to control all lock and unlock functions automatically.

Optional 9000KG jacks and LED AlignLights can be added to make service easier and safer.

Features at-a-glance

Galvanized runways

Powerful 9000KG. jacks (optional)

PowerSlide-capable turnplates and slipplates

LED lighting (optional)

Specifications at-a-glance

15000KG. Capacity

762 mm Runway width

7620 mm Alignment wheelbase

8128 mm. Service wheelbase

Product at-a-glance

  • 15000KG Capacity
  • Galvanized 762 mm. wide runways
  • 7620 mm. Alignment wheelbase
  • 8128 mm. Service wheelbase
  • Built-in slipplates and turnplates for universal alignment capability

Make a stand in your alignment bay.

Heavy-Duty Lift Features

762 mm. extra-wide galvanized runways accommodate all vehicles. Align up to 7620 mm. wheelbases (8128 mm. service wheelbase).

Heavy-weight 15875 kg. lifting capacity is best-in-class.

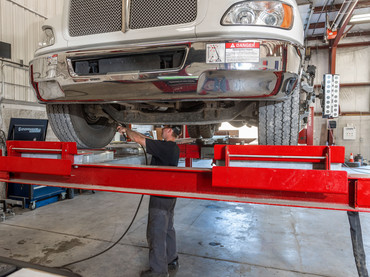

Include optional one or two 9071 kg. capacity hydraulic cylinder jacks to easily raise vehicles off runways.

Convenient console featuring push-button functions give technicians full-control.

Light-duty application

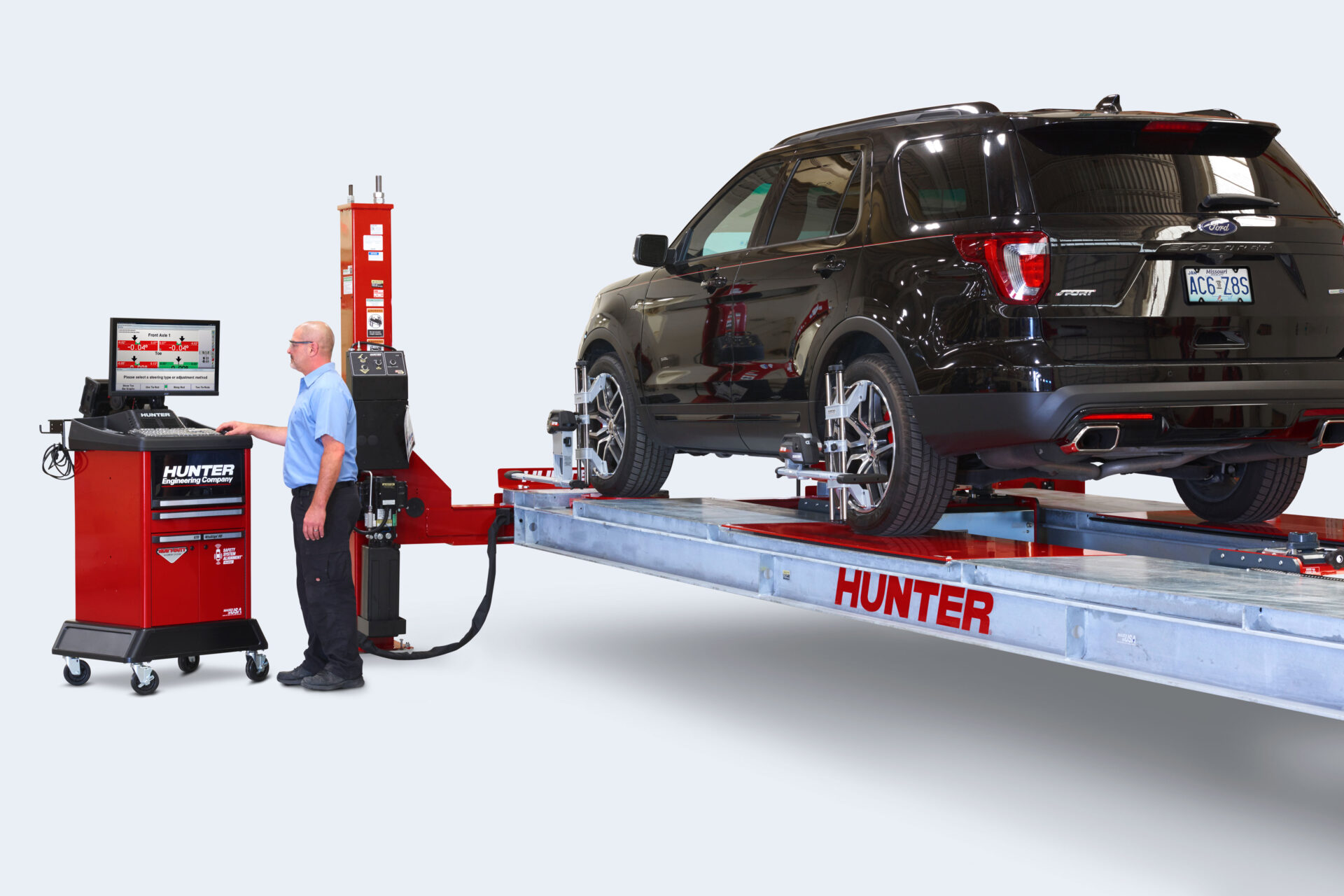

Hunter’s Heavy-Duty Four-Post comes alignment ready with turnplate pockets and slipplates for easily servicing standard vehicles as well.

High-strength galvanized cables and 7 lock positions provide long, reliable life.

High-traction design prevents wheel spin – better than diamond plate or abrasive finish.

Protective cord covering prevents damage to air and hydraulic lines.

Designed & built in the USA, and installed locally by Hunter’s highly-qualified service team.

Optional – Control PowerSlide® and raise/lower lift features from the aligner console

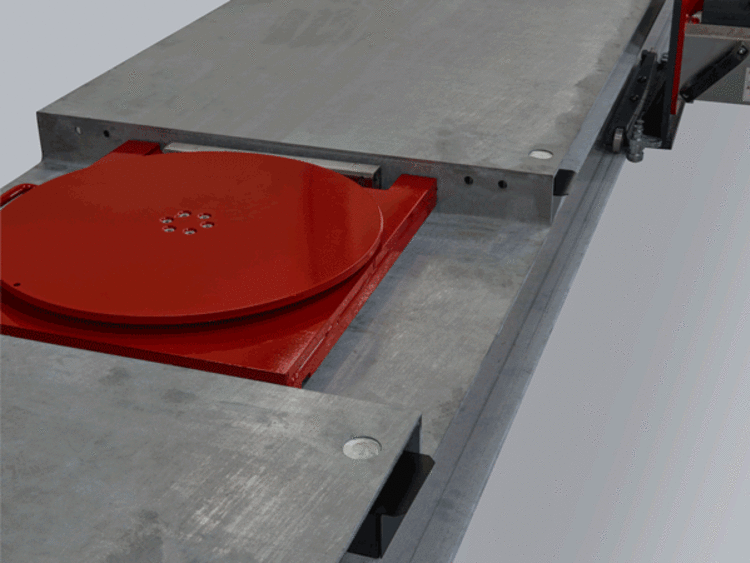

Optional – Eliminate struggle with turnplate pins. Turnplates and slipplates lock and unlock at the right time (with FIA).

Optional – See where you work. Lights shut off automatically when rack is lowered and turn on when raised.

Specifications

Key Specifications L494HD
Max Vehicle Weight 35000
Runway Width 762mm
Max Two-Wheel Alignment 7620.02mm
Max-Four Wheel Alignment 4013.21mm
Max General Service 8128.02mm
Minimum Four Wheel Alignment 2235.2mm
Max Raise Height 1774.96mm

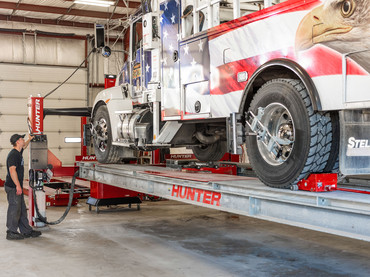

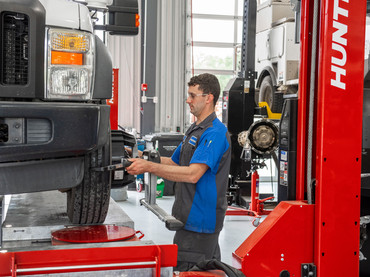

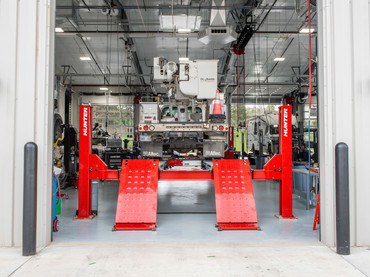

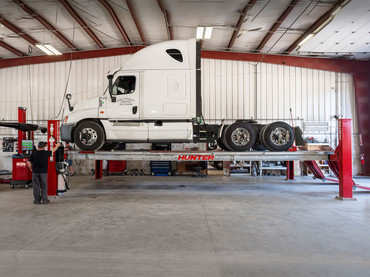

See other shops using it

Invest in the four strongest posts in undertruck service.
