2 Floors Semi-automatic Hydraulic Car Parking System

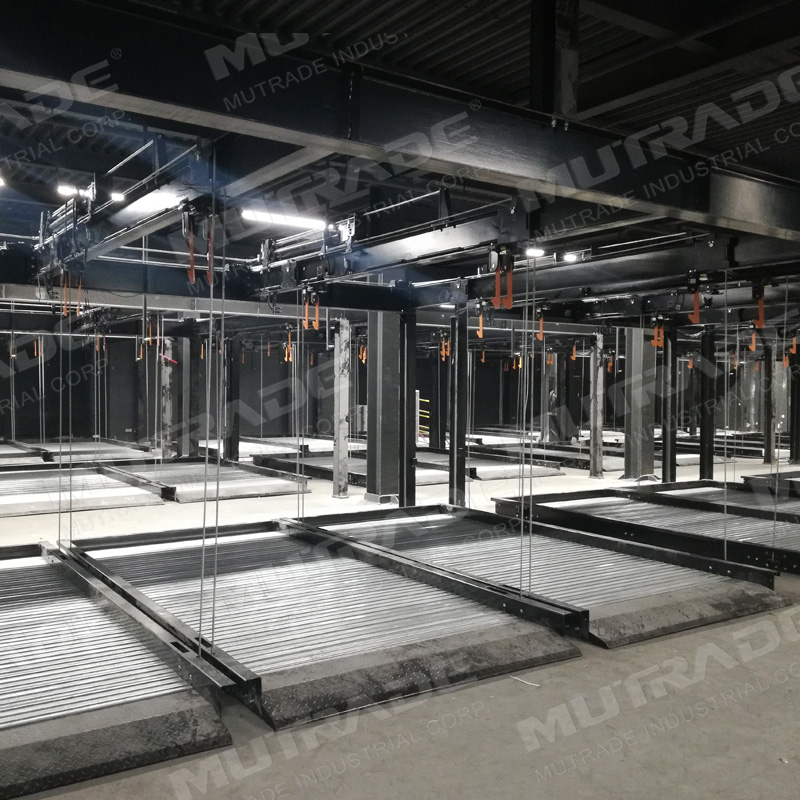

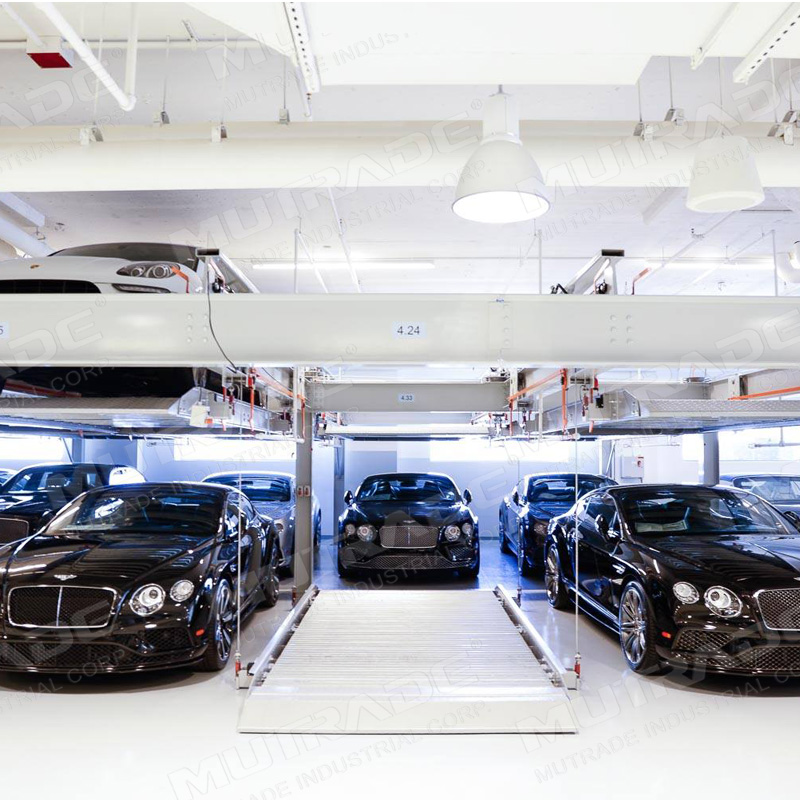

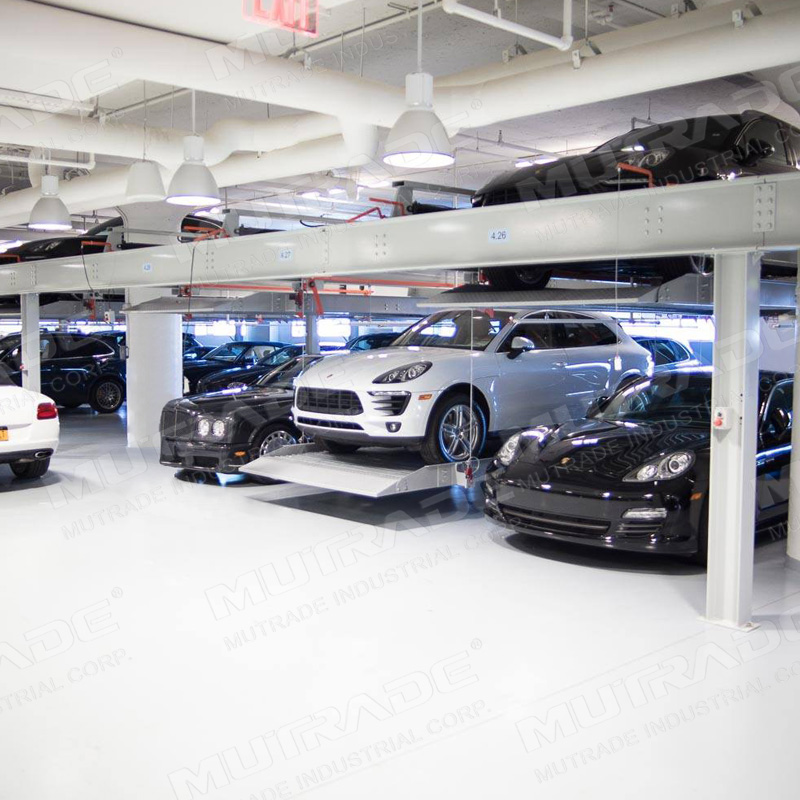

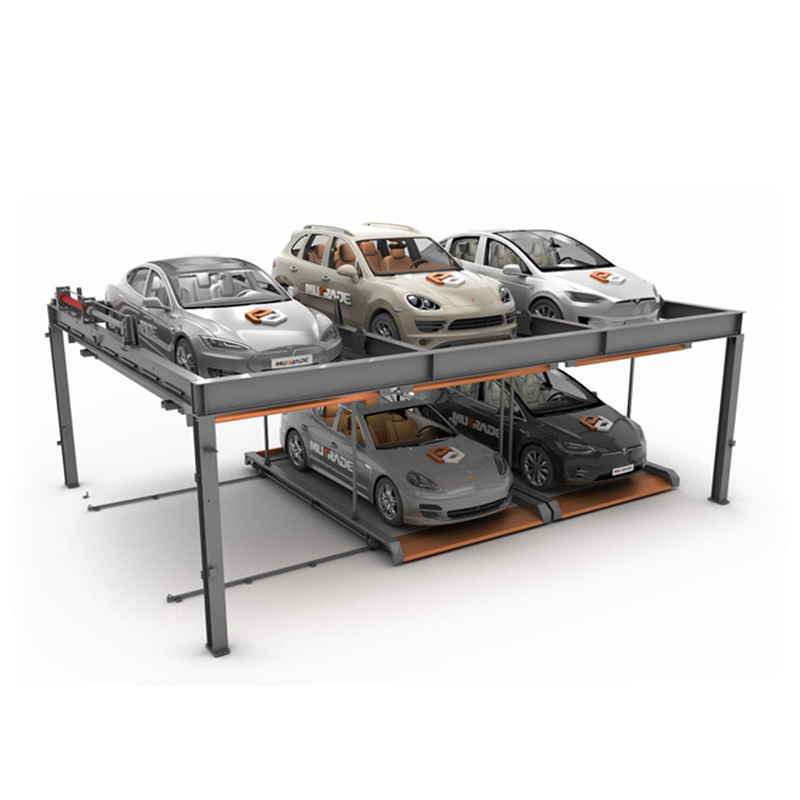

BDP-2 is a semi-automatic parking system, developed by Mutrade. The parking space selected is moved to the desired position by means of an automatic control system, and the parking spaces can be shifted vertically or horizontally. Entrance level platforms move horizontally and upper level platforms move vertically, with always one platform less at the entrance level. By swiping the card or input the code, the system automatically moves the platforms in the desired position. To collect a car parked on the upper level, the platforms at the entrance level will first move to one side to provide an empty space into which the required platform is lowered.

BDP-2 mobilizes the existing space by using it the best possible way. It can be used to park two cars on top of each other, and offers space from 5 to 29 cars. A driving lane in front of the full width of the system is required to access all parking spaces, and one vacant space on the entry level allows for horizontal or vertical shifting of all platforms. The access level can be secured by doors which can only be opened once the shifting process is completed. Therefore, cars are protected against theft and vandalism.

Your business can lease to own this BDP-2, talk to us about options.


A new comprehensive introduction of BDP series


1. Could BDP be used outdoor?
Yes. Firstly, the finishing of structure is zinc coating with a better water-proof. Secondly, extra covers could be installed to prevent from rain, snow, and heavy wind.

2. Could BDP series be used for parking SUV?
BDP series could be customized to t for SUV, for detailed requirements please contact Mutrade sales.

3. What’s the voltage requirement?
The standard voltage should be 380v, 3P. Some local voltages could be customized according to clients’ request.

4. Can this product still operate if electricity failure happens?
No, if electricity failure happens often in your place, you have to have a back-up generator to supply power.

5. Can BDP series installed by customer themselves?
If you’re new for our BDP series, we recommend sending our engineer to guide the installation.

*Anti Fall Frame

Mechanical lock (never brake)

*Electric hook available as an option

*More stable commercial powerpack
Available up to 11KW (optional)

Newly upgraded powerpack unit system with Siemens motor

*Twin motor commercial powerpack (optional)

SUV parking available

The reinforced structure allows 2100kg capacity for all platforms

with higher available height to accommodate SUVs

Overlength, over height, over loading detection protection

A lot of photocell sensors are placed in different positions, the system
will be stopped once any car is over length or height. A car over loading
will be detected by the hydraulic system and not be elevated.

Lifting Gate

Gentle metallic touch, excellent surface finishing

After applying AkzoNobel powder, color saturation, weather resistance and
its adhesion are significantly enhanced

Superior chains provided by
Taiwan motor manufacturer

The life span is 20% longer than that of the Chinese chains.

Galvanized screw bolts based on the
European standard

Longer lifetime, much higher corrosion resistance.

Laser cutting + Robotic welding

Accurate laser cutting improves the accuracy of the parts, and automated robotic welding makes the weld joints more firm and beautiful


Key Specifications BDP-3
Levels 2
Lifting capacity 2500kg / 2000kg
Available car length 5000mm
Available car width 1850mm
Available car height 2050mm / 1550mm
Power pack 4Kw hydraulic pump
Available voltage of power supply 200V-480V, 3 Phase, 50/60Hz
Operation mode Code & ID card
Operation voltage 24V
Safety lock Anti-falling frame
Rising / descending time <35s
Finishing Powdering coating
