Technician-friendly controls

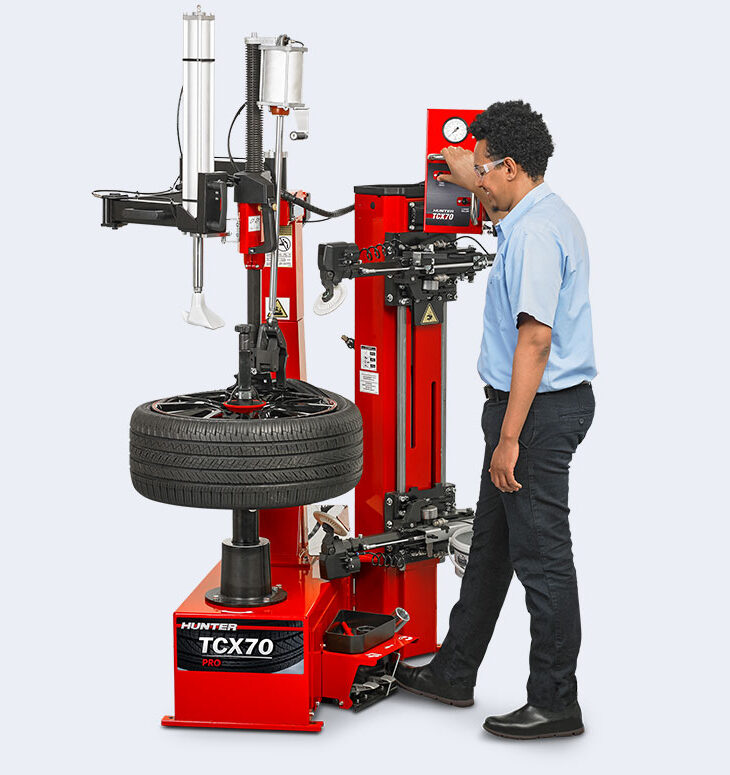

Hunter TCX70 Pro Tyre Changing Machine
Powerful and Operator-Friendly
Equipped and easy-to-use
Everything you need for standard tyre changing
The Hunter Engineering TCX70 Pro tyre changer comes equipped to handle virtually all common tire and wheel combinations.
Features at-a-glance
12-30 inch rim diameters
Secure wheels with no damage
Dual bead roller system
Specifications at-a-glance
880 Nm
Torque
45 in.
Max Tyre Diameter
Up to 30 in.
Max Rim Diameter
15 in.
Max Rim Width
Make your tyre service faster and easier
Enhanced Features
Operator-friendly
- Easy-to-operate, intuitive controls
- Three joysticks and three foot pedals control virtually all tire changing operations
Roller and diameter control
- One fluid motion controls demounting activities
- Rollers can be adjusted to the correct diameter from a single lever

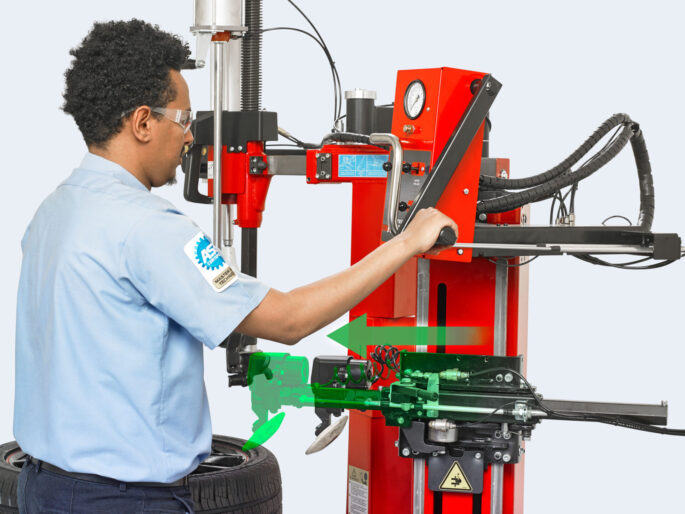

Convenient tool head
- Tool head swivels out of the way when raised and resets to same rim automatically
- Upper roller moves away to save time on standard wheel service
- Save space over tilt-back designs
New

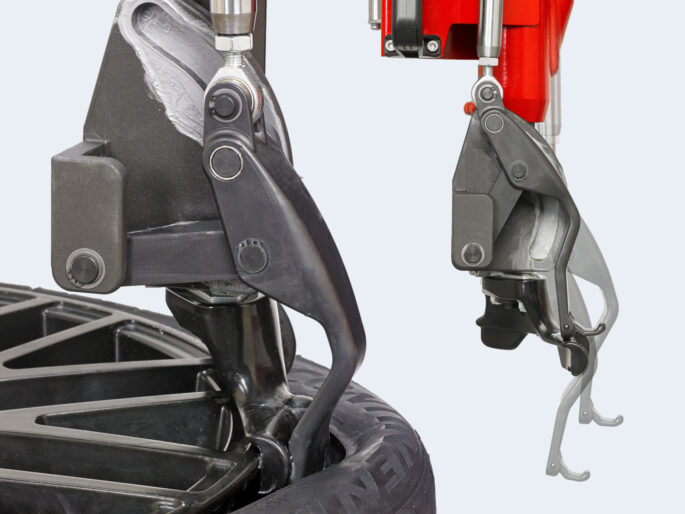

Hybrid leverless tool head
- Extended travel improves demount range and performance
- Keeps bead in position during demount
- Rounded profile reduces tyre damage risk
- Reduces operator fatigue
- Doesn’t require protective inserts
- Reduces wheel damage risk
- Wing feature keeps beads in position during demount
Lease to own over 60 months
with repayments
Your business can lease to own this Hunter TCX70 Pro Tyre Changing Machine from approx. $160.00 per week excluding GST on a 60 month term. Included is our 36 month comprehensive service agreement, which covers all parts and labour & includes 6 monthly preventative maintenance calls from our Hunter factory trained technicians.
from
$32.00
per day
Terms and conditions apply.
Power and control at your fingertips
Assist tools make the difference

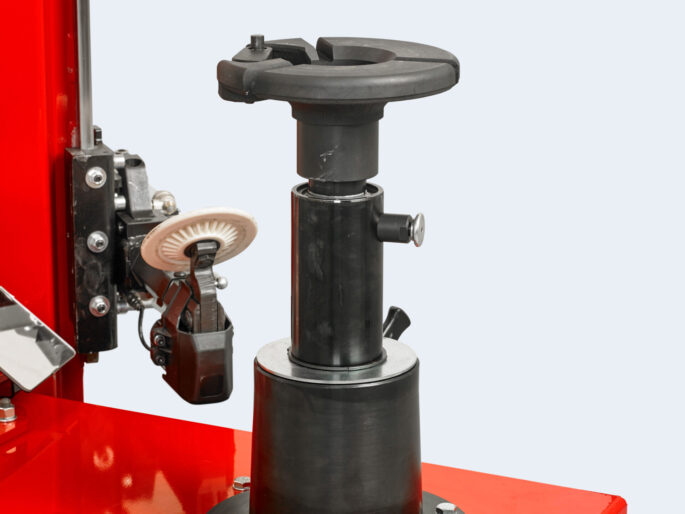

Two-position platen
- Handles wide range of wheels
- Damage-free clamping
- Better accommodates wide and reverse wheels

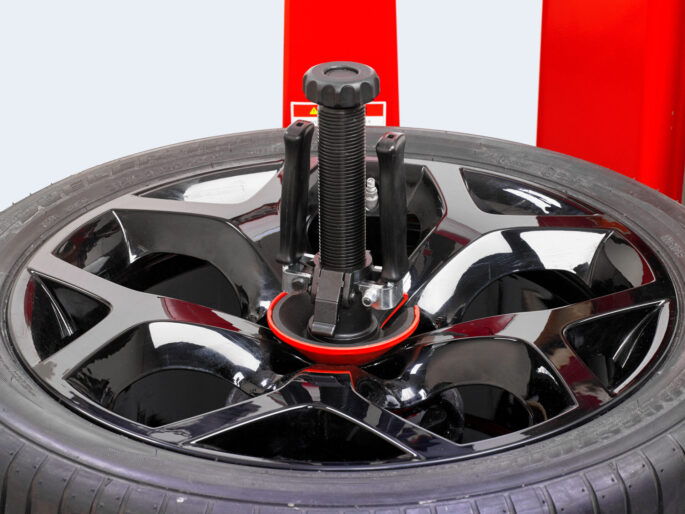

Quick Clamp
- Safely secures wheel through hub
- Speeds clamping process
- Damage-free design

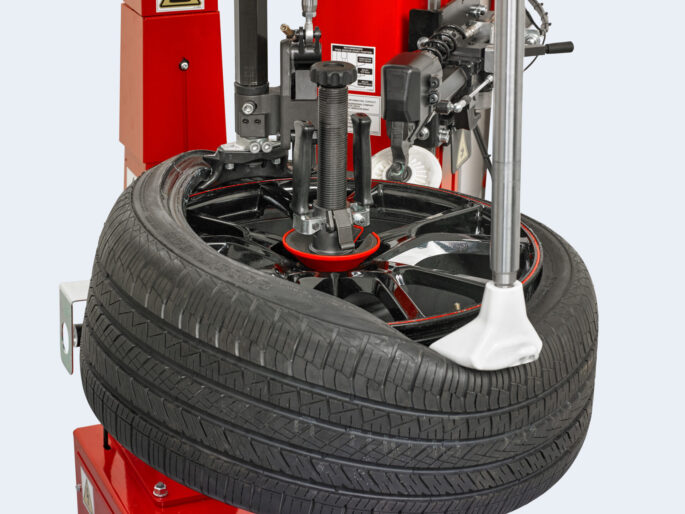

Bead press arm
- Assists mounting and demounting difficult or heavy tires
- Bead press is easily controlled at the push of a button
Eliminate wheel vibration
Match-mounting and bead massage
Hunter’s center-clamp tire changers used with Road Force® wheel balancers eliminate vibration problems, reduce comebacks, and increase customer satisfaction.
During bead massage, rollers apply force to the tire walls, assisting proper bead seating and reducing vibration concerns.
Protect your customers' wheels today!
Optional accessories
Easily and safely lift large wheel assemblies using this convenient ramp design
Directs large blast of compressed air exactly where needed to seat the bead
Heavy and standard-duty flange plate options are available for the TCX70 Pro – ideal for plastic clad wheels or reverse wheels where maximum protection is needed
Adds clamping capability and height for truck wheels with large center holes and high offset wide wheels respectively
Specifications
| Expand all Collapse all |
TCX70-21U |
|---|
| Key Specifications | TCX70PRO-21U |
|---|---|
| Clamping Type | Center with Quick Clamp |
| Mount/Demount Tool | Hybrid leverless head |
| Bead Loosening Type | Upper/Lower Roller |
| Match-mounting Capable | Yes |
| Adjustable Clamping Height | No |
| Rim Diameter Range (Min) | 305mm |
| Rim Diameter Range (Max) | 762mm |
| Max Tyre Diameter | 1143mm (45 in.) |
| Max Wheel Width | 381mm (15 in.) |
Explore the range
Revolution Tyre Changer™
Fully-automatic
- 80-second unattended bead breaking and demounting process
- Built-in wheel lift
- Powered press arms
- Leverless tool head
- Built-in camera monitors operations
- Center-clamp design avoids clamping damage
- Automated design suits technicians of all experience levels
Equip your shop with match-mounting capabilties
Completely eliminate wheel vibrations by pairing your tyre machine with a Road Force® Elite wheel balancer
