Hunter Center-Clamp Tyre Changers

Simple operation, superior wheel protection

Hunter Center-Clamp Tyre Changers

Center-Clamp Tyre Changers

Simple operation, superior wheel protection

Hunter offers four models of center-clamp tyre changers for any need.  From the popular three button leverless Auto34 to more basic models, damage free operation is attainable for all budgets.

Features at-a-glance

Leverless and traditional options

Cam plate tightens under torque

Center-shaft clamping

Adjustable height mounting

Specifications at-a-glance

1175 Nm
Torque (on select models)
Up to 34 in. Max Rim Diameters
0-14+ rpm Variable Speed (on select models)
19 in. Max Rim Width

Product family at-a-glance

Did you know?

73% of assemblies today are considered difficult-to-service

Low-profile, run-flat, large diameter and heavy assemblies require skilled technicians when using conventional tyre changers.

Being equipped with the most advanced, technology on the market today allows the equipment, instead of the technician, to eliminate fitment challenges.

Give your technicians a break

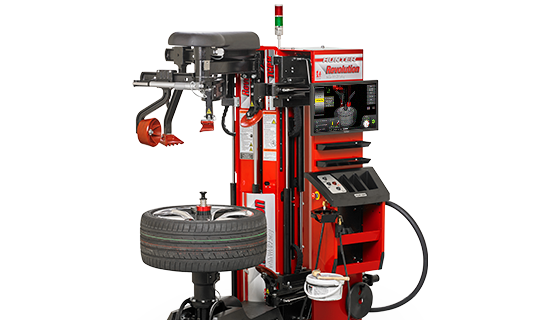

Consistent service times, fewer technician decisions and autonomous WalkAway™ mode makes tyre service on the Hunter Revolution™ simpler than ever.

Auto34R Exclusive Features

Precise Diameter Control

Electric telescoping chassis is smooth and responsive.

Simple controls

Auto34R features three button operation

Automatic Indention

Simplifies and speeds bead loosening

Memory Function

Quickly returns toolhead to preset location

High-volume blast tank

Slim profile and large capacity to seat truck and SUV tires

Small footprint

Improved features save valuable floor space

TCX70 Pro Exclusive Features

Operator-friendly

Simple, three joystick control layout with touch indention function

Diameter control

Operate from a single point and retain diameter until reset

Hybrid leverless tool head

Lifts bead without use of levers and reduces wheel and tire damage risk

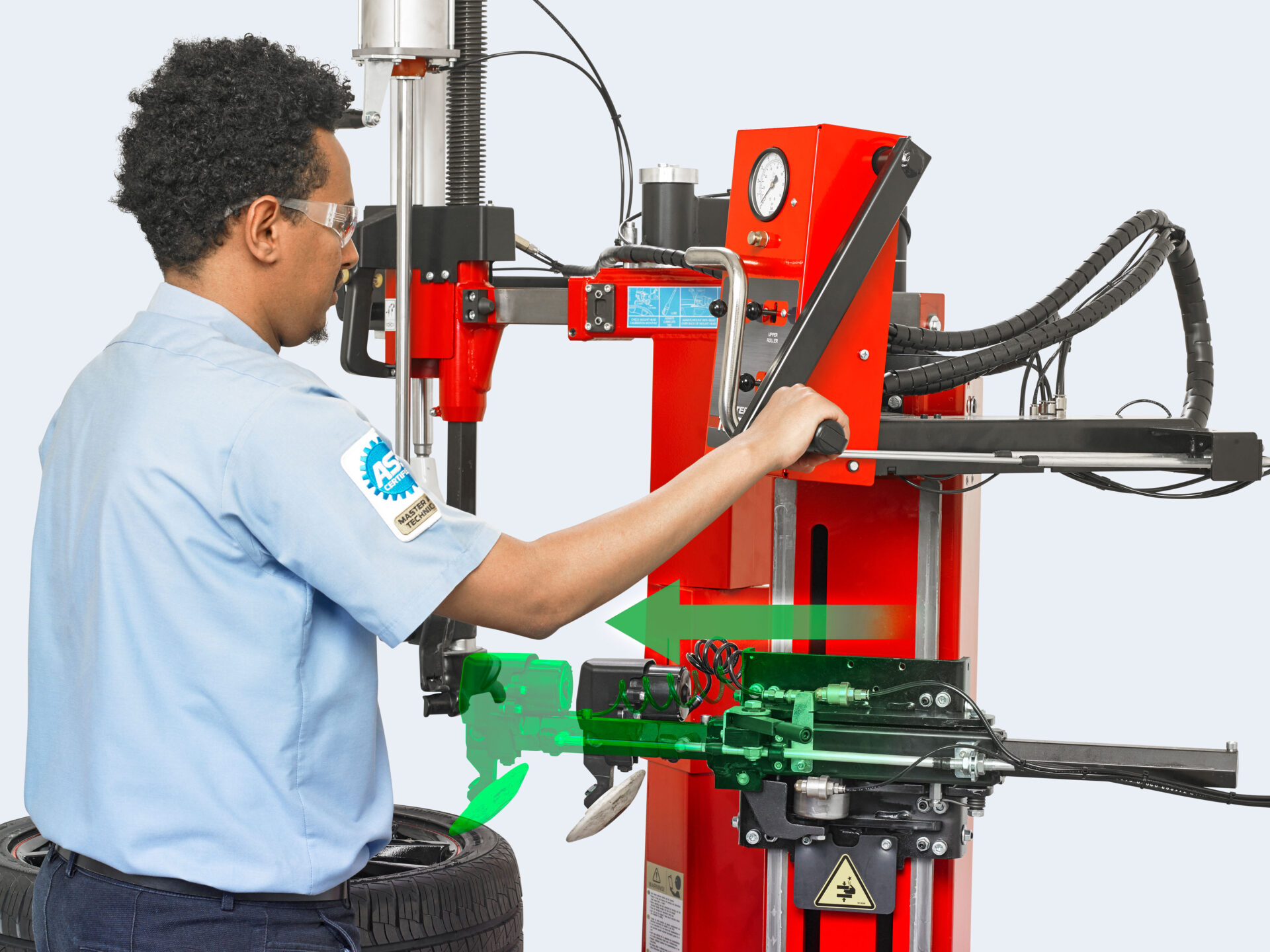

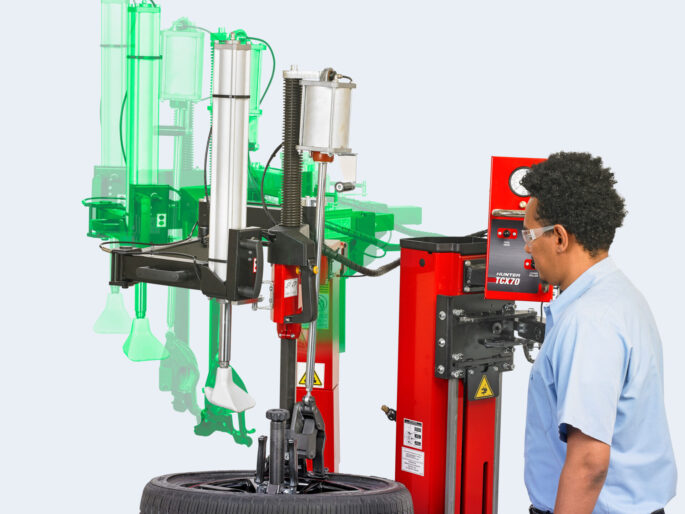

Convenient tool head

Swivels out of the way and resets to same rim automatically

Upper roller

Provides clearance on tall reverse assemblies

Two-position platten

Damage-free clamping on a wide range of wheels

Lease to own over 60 months
with repayments

Your business can lease to own this Hunter Centre-Clamp Tyre Changer TCX70 from approx. $130.00 per week excluding GST on a 60 month term. Included is our 36 month comprehensive service agreement, which covers all parts and labour & includes 6 monthly preventative maintenance calls from our Hunter factory trained technicians.

from

$26.00

per day

Terms and conditions apply.

Make wheel servicing safer and easier

TCX70 Pro

  • Lifts bead without use of levers
  • Reduces wheel and tire damage risk

TCX70

  • Assists mounting toughest tyres
  • Demounting assistance for runflats

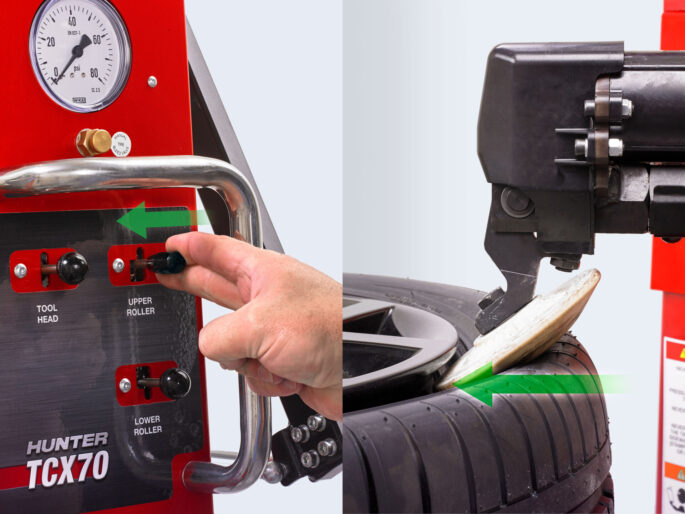

TCX70

  • Easy bead loosening
  • Lower roller demount bottom bead, making heavy tires managable
  • Dual rollers essential for match mounting and bead massage

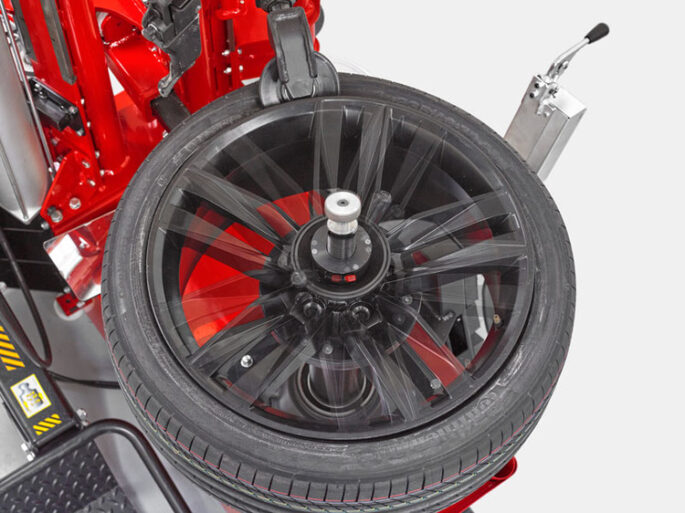

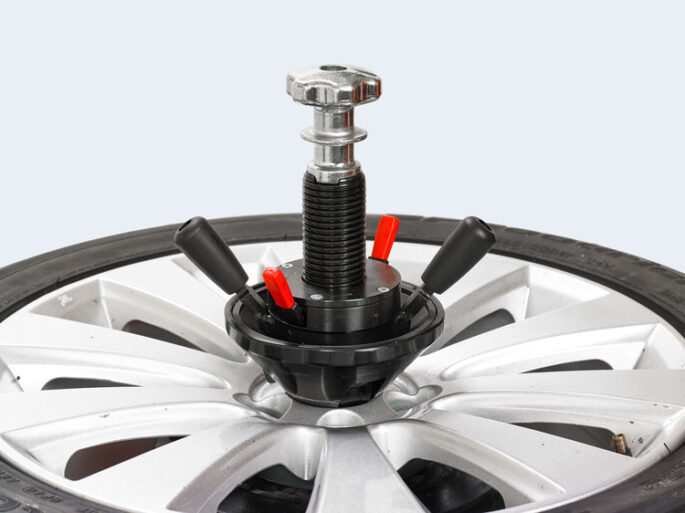

Secure wheels with no damage

  • Grip from the strongest part of the rim
  • No teeth to damage rim
  • Tightens just as much as needed to grip wheel
  • Three adjustment heights adapt to all wheel types
  • Two options for clad wheels and reverse wheels needing extra protection

Protect your customers' wheels today!

Ease-of-use features for technicians

Optional on TCX70 Pro

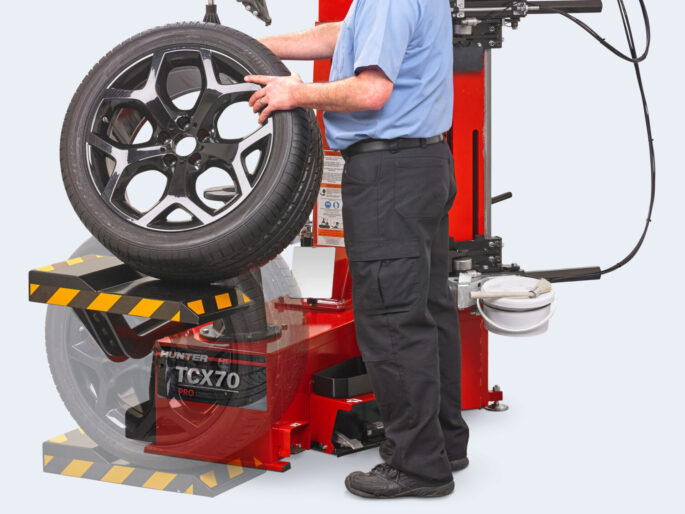

Convenient ramp design easily and safely lifts large assemblies.

Handheld air blast nozzle directs burst where needed to seal beads.

Additional features

  • 0-14+ rpm forward speed is infinitely variable
  • Slow speed for reverse

Two-speed (7 / 17 rpm clockwise, 7 rpm counter-clockwise) on TCX70 Pro

1166 Nm (860 ft-lbs) of torque won’t stall on tough assemblies

880 Nm (650 ft-lbs) on TCX70 Pro

Did you know?

Bead massage reduces wheel vibrations

Bead massage reduces road force vibration by an average of seven pounds.   Some assemblies can see road force reductions well over 20 pounds!

To bead massage you need a dual bead roller center-clamp tire changer.  While still clamped, inflate the tire to OEM recommended pressure and refit the core.  One at a time, bring the bead roller against the sidewall of the tire at the rim edge and press approximately 1/4 inch into the tire.  Rotate two or three revolutions for each bead.

Bead massage takes less than a minute, but can significantly reduce road force, a leading cause of vibration.

Specifications

Key Specifications TCX70PRO-21U
Clamping Type Center with Quick Clamp
Mount/Demount Tool Steel Leverless w/Protection
Bead Loosening Type Upper/Lower Roller
Match Mounting Capable YES
Adjustable Clamping Height NO
Rim Diameter Range (Min) 304.8mm
Rim Diameter Range (Max) 762mm
Max Tyre Diameter 1143mm
Max Wheel Width 381mm

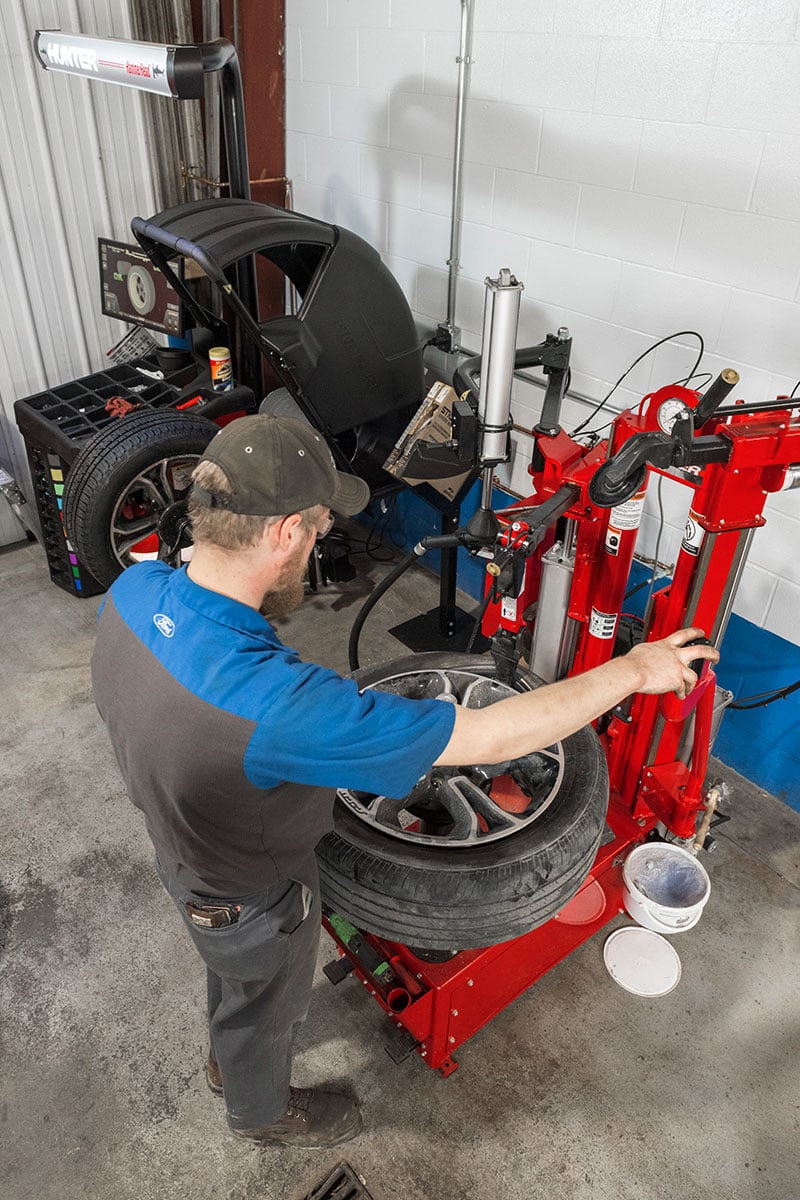

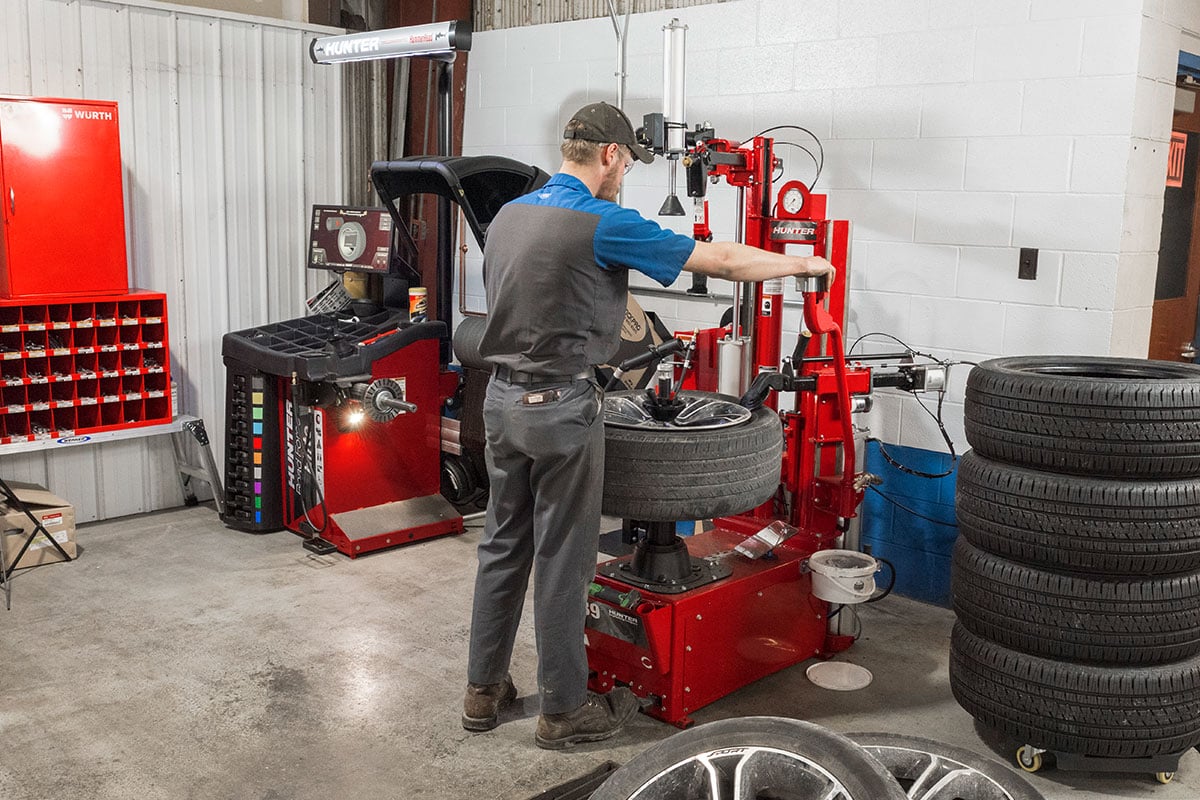

See how other shops are using them

Equip your shop with match-mounting capabilties.

Eliminate wheel vibrations by pairing the tyre machine with a Road Force® Elite wheel balancer.
