BDP-6
6 Floor Hydraulic Speedy Puzzle Type Car Parking System

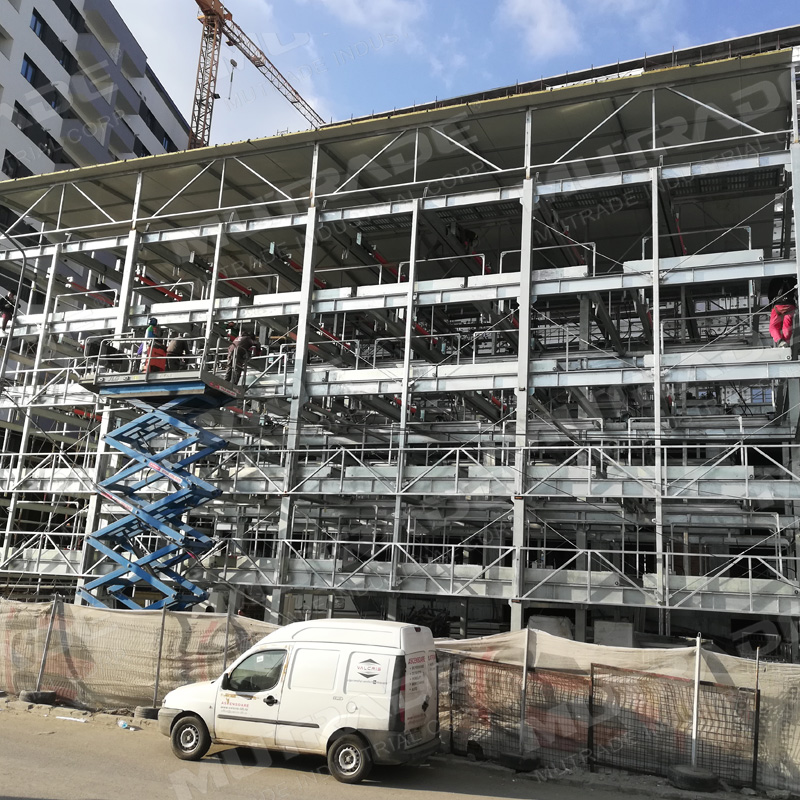

BDP-6 is a kind of automatic parking system, developed by Mutrade. The parking space selected is moved to the desired position by means of an automatic control system, and the parking spaces can be shifted vertically or horizontally. Entrance level platforms move horizontally only and upper level platforms move vertically, meanwhile top level platforms move vertically only and lower level platform move horizontally, with always one column of platforms less except the top level platform. By swiping the card or input the code, the system automatically moves the platforms in the desired position. To collect a car parked on the upper level, the lower level platforms will first move to one side to provide an empty space into which the required platform is lowered.
- Commercial grade design

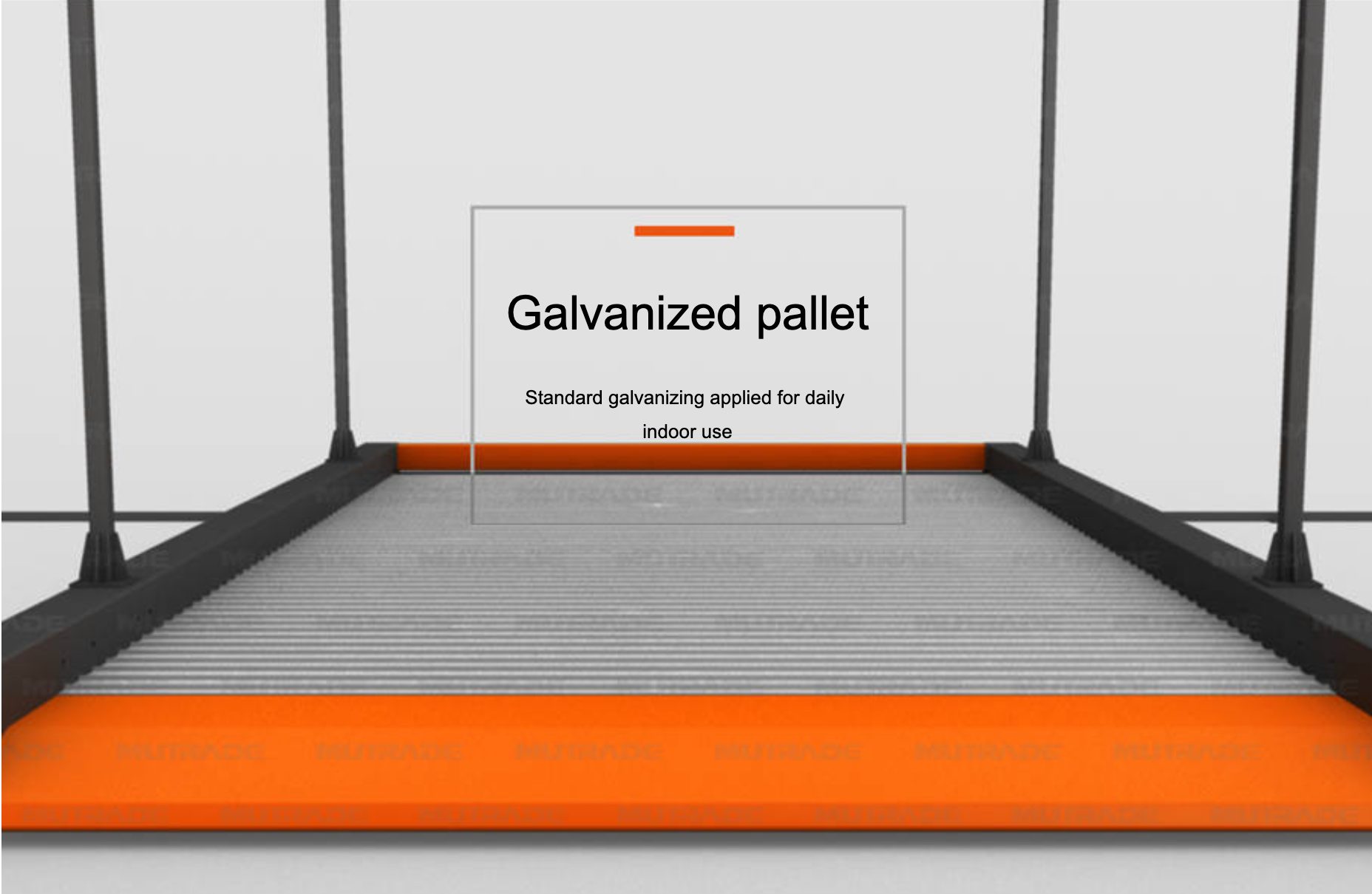

- Galvanized platform with wave plate for better parking
- 15 levels above ground for all sedan maximum or 5 levels above ground for all SUV maximum
- Can be mixed with 3 levels underground
- Galvanized platform with wave plate for better parking
- Hydraulic cylinder with steel rope drive
- Fast lifting and descending speed
- Patented Hydraulic variable frequency speed control technology to smoothly approaching ground
- Central hydraulic power pack and control panel, with PLC control system inside
- Code, IC Card and manual operation available
- 2000kg capacity for sedan system, and 2500kg capacity for SUV system
- Patented anti-falling frame protection
- Hydraulic overloading protection
Your business can lease to own this BDP-6, talk to us about options.
BDP 6
A new comprehensive introduction of BDP series

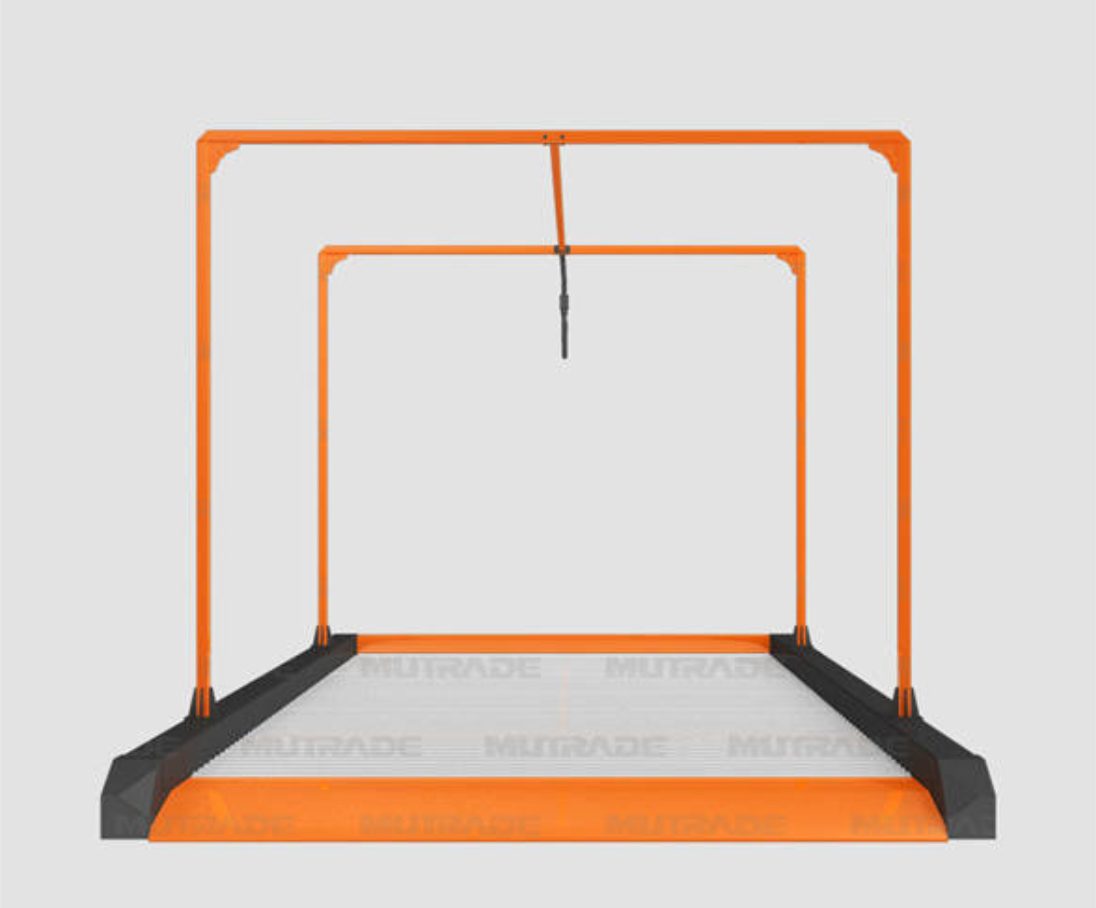

*Anti Fall Frame
Mechanical lock (never brake)
*Electric hook available as an option
*More stable commercial powerpack
Available up to 11KW (optional)
Newly upgraded powerpack unit system with Siemens motor
*Twin motor commercial powerpack (optional)
SUV parking available
The reinforced structure allows 2100kg capacity for all platforms
with higher available height to accommodate SUVs

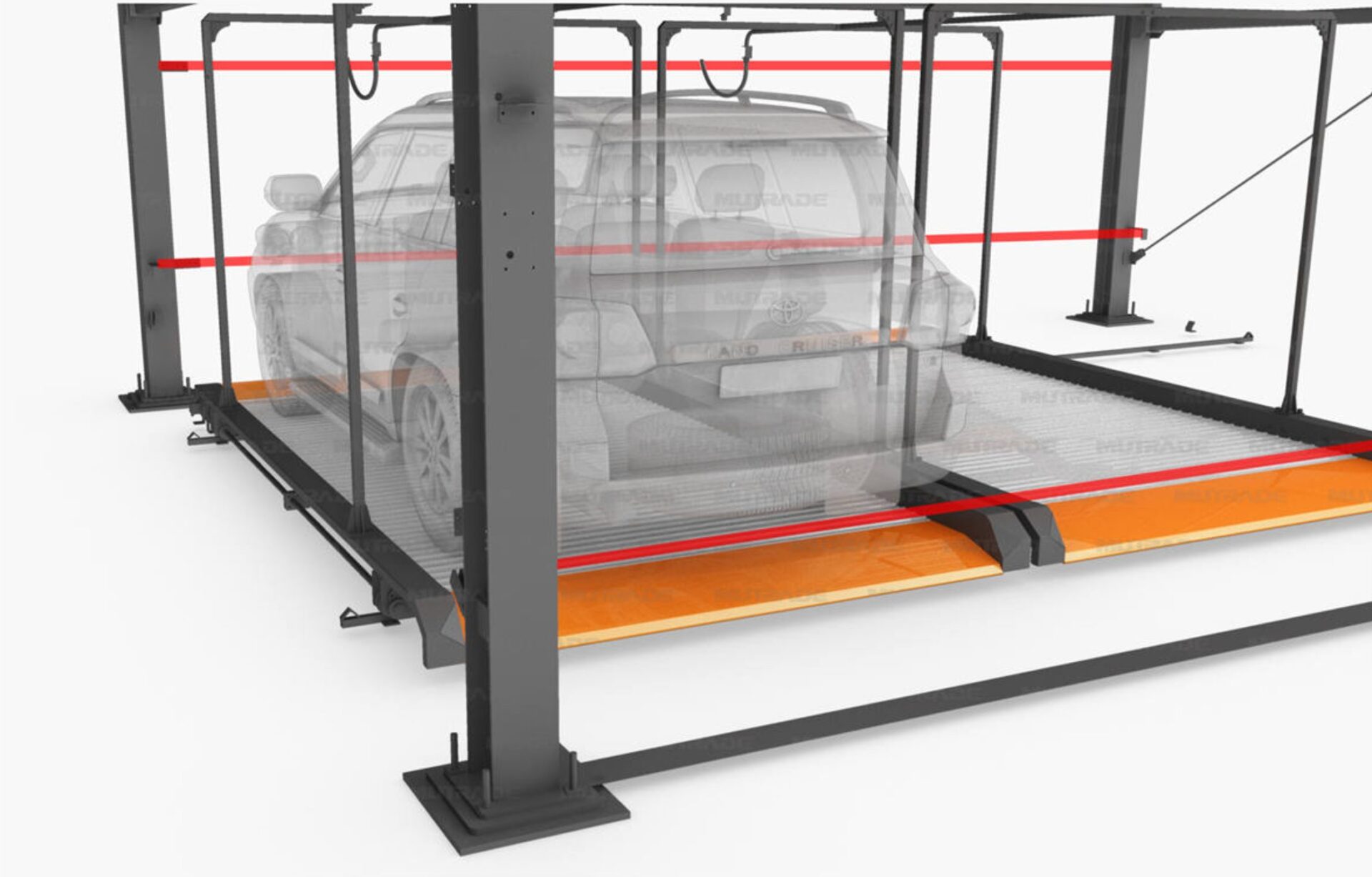

Overlength, over height, over loading detection protection
A lot of photocell sensors are placed in different positions, the system
will be stopped once any car is over length or height. A car over loading
will be detected by the hydraulic system and not be elevated.

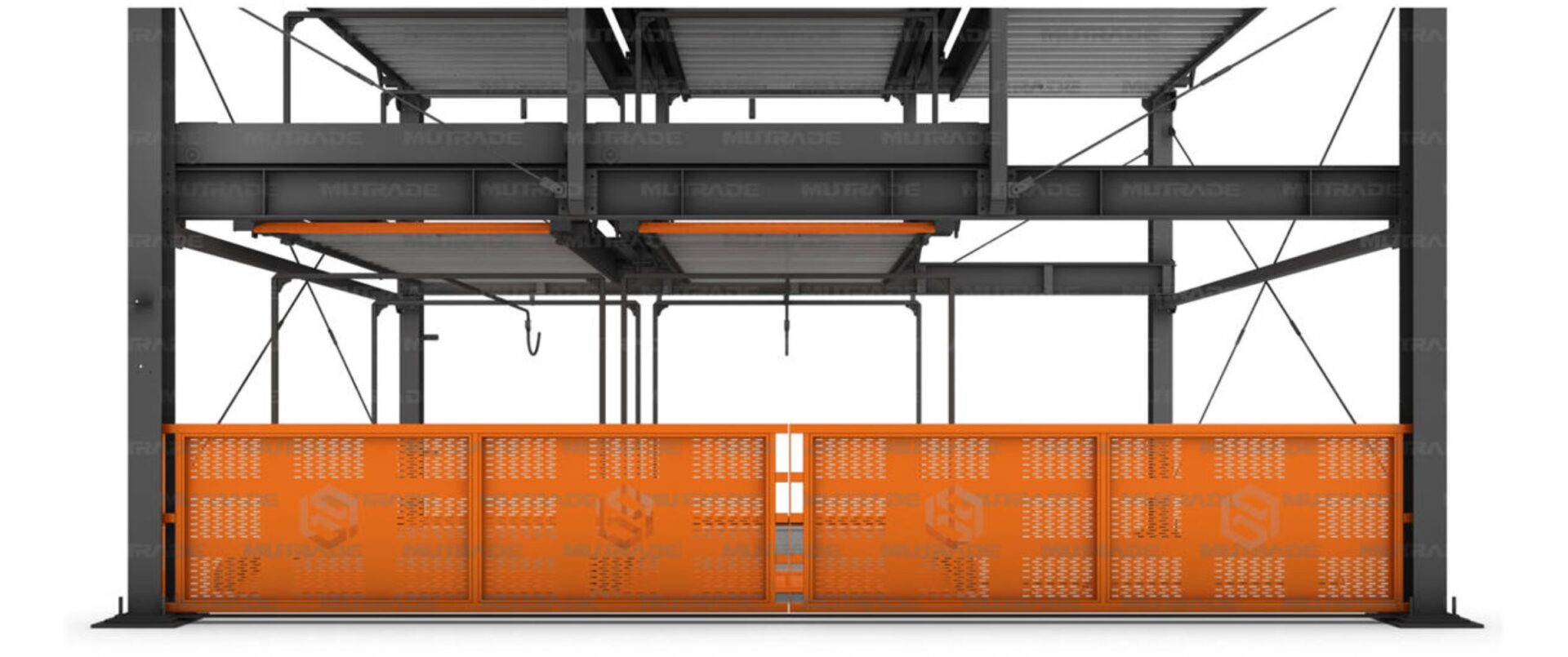

Lifting Gate
Gentle metallic touch, excellent surface finishing
After applying AkzoNobel powder, color saturation, weather resistance and
its adhesion are significantly enhanced
Superior chains provided by
Taiwan motor manufacturer
Galvanized screw bolts based on the
European standard
Longer lifetime, much higher corrosion resistance.
Laser cutting + Robotic welding
Accurate laser cutting improves the accuracy of the parts, and automated robotic welding makes the weld joints more firm and beautiful
Specifications
| Key Specifications | BDP-6 |
|---|---|
| Levels | 6 |
| Lifting capacity | 2500kg / 2000kg |
| Available car length | 5000mm |
| Available car width | 1850mm |
| Available car height | 2050mm / 1550mm |
| Power pack | 7.5 Kw / 5.5Kw hydraulic pump |
| Available voltage of power supply | 200V-480V, 3 Phase, 50/60Hz |
| Operation mode | Code & ID card |
| Operation voltage | 24V |
| Safety lock | Anti-falling frame |
| Rising / descending time | <55s |
| Finishing | Powdering coating |
